35 kHz01 / 01Click to expand ⤢Ultrasonic cutting actuator · Special Actuators

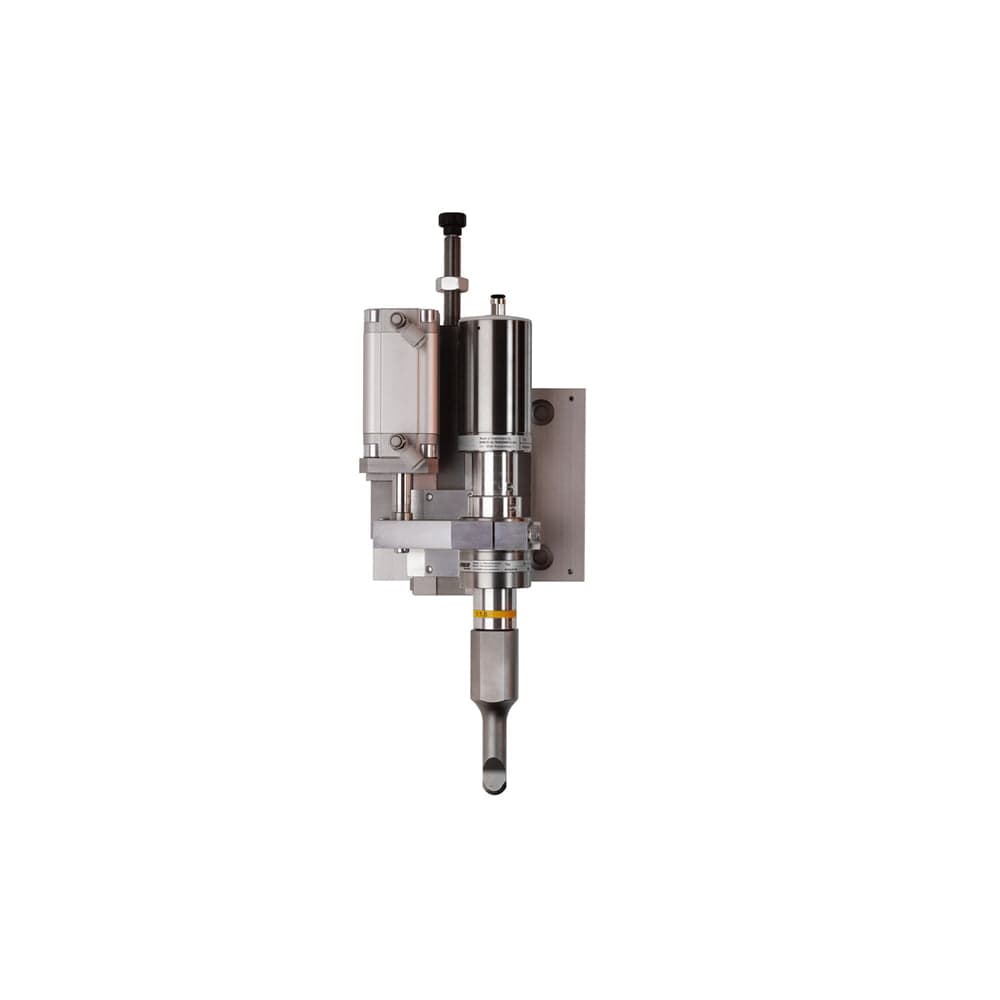

SV 35
35 kHz cutting actuator for integrating ultrasonic cut-and-seal into machines.
The SV 35 actuator puts ultrasonic cutting inside your machine: a 35 kHz cut-and-seal head for synthetic fabrics, films and food applications, built for continuous automated operation.
- Operating frequency
- 35 kHz
- This actuator is used as a component in special purpose machines
- Maximum force
- 745 N at 6 bar compressed air
- Maximum stroke
- 100 / 50 mm
- Weight
- 5 kg with oscillator system, 4 kg without oscillator system
- Generator suitability
- SDG35-400/750/900, RDG35-400/750/900, AGM35-400/600/900, ADG35-400/600/900
Defining features
- Configurable with RDG, SDG and ADG generators as well as with an external controller
- Travel measurement, valve block and trigger box optionally available
- Designed for integration into special purpose machines
- Compact construction
Technical specifications
| Operating frequency | 35 kHz |
|---|---|
| This actuator is used as a component in special purpose machines | |
| Maximum force | 745 N at 6 bar compressed air |
| Maximum stroke | 100 / 50 mm |
| Weight | 5 kg with oscillator system, 4 kg without oscillator system |
| Generator suitability | SDG35-400/750/900, RDG35-400/750/900, AGM35-400/600/900, ADG35-400/600/900 |

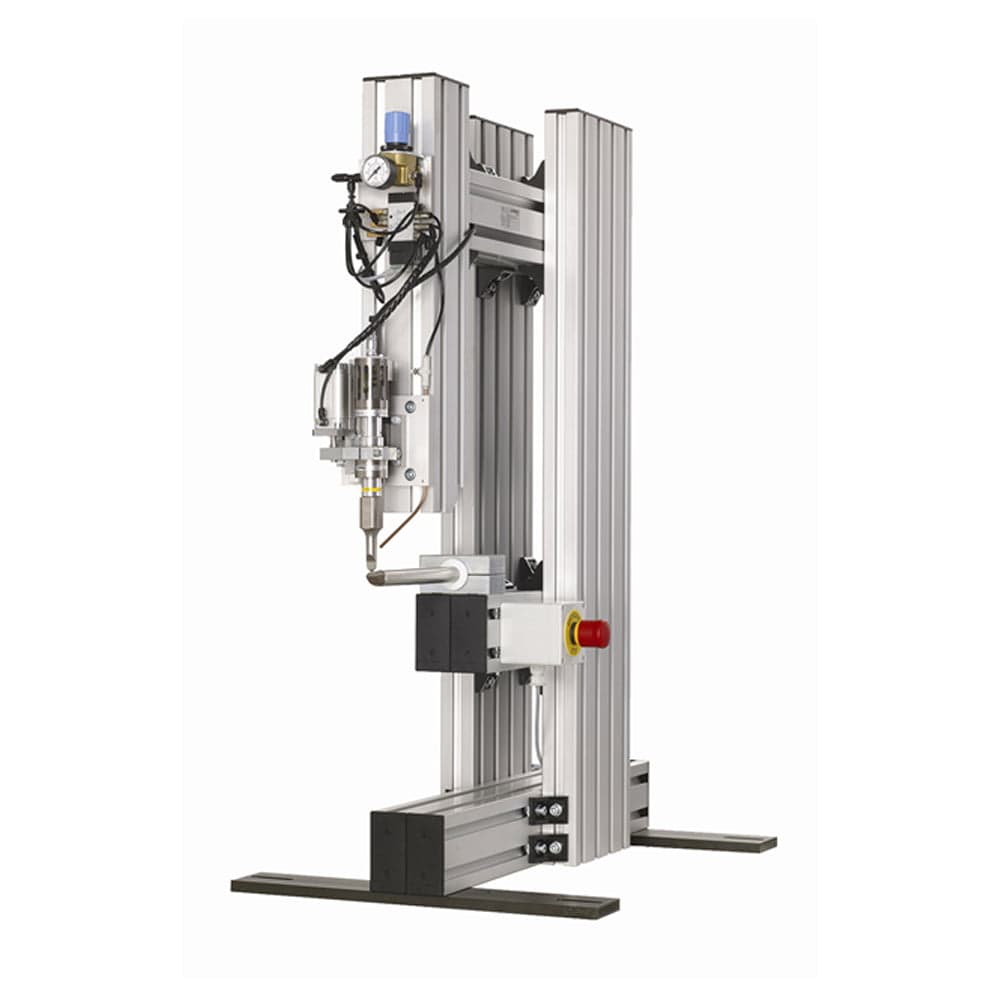

Related equipment
