20 kHz01 / 03Click to expand ⤢Sound enclosure workstation · Ultrasonic Options

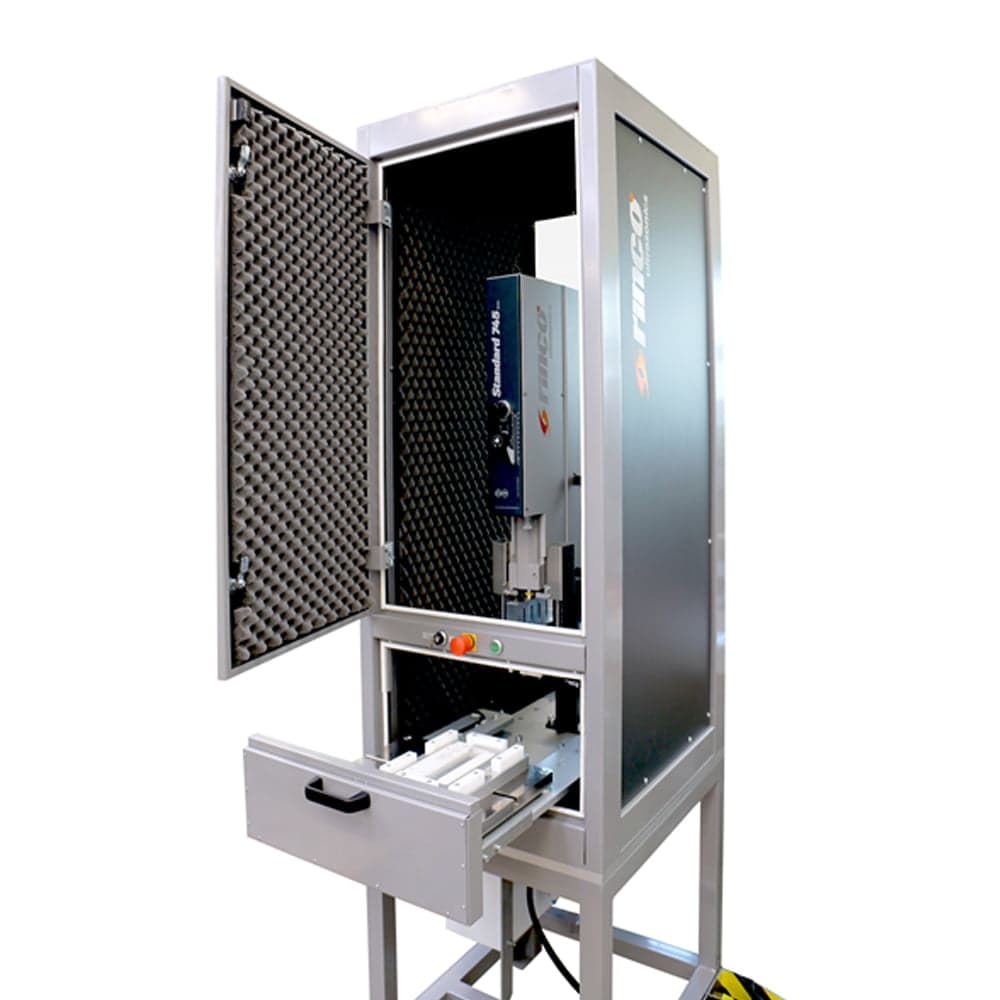

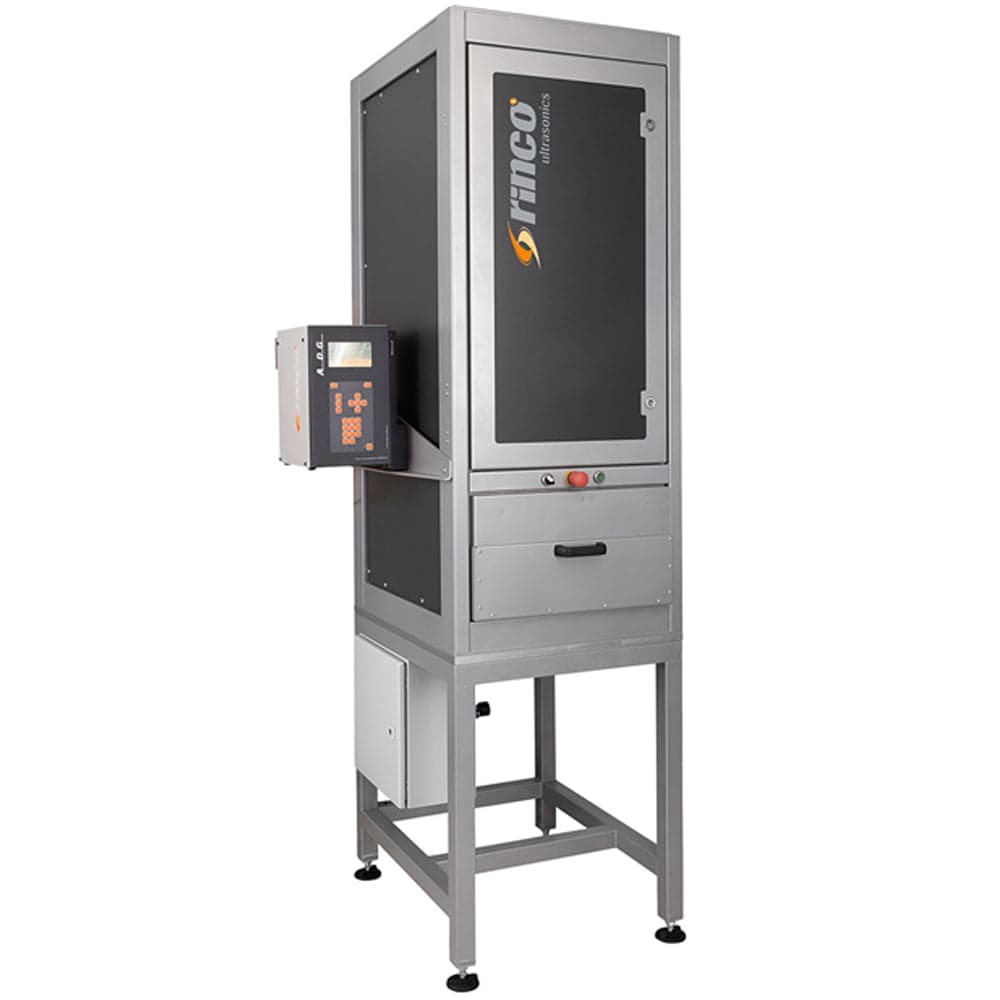

Workstation Enclosure with Automatic Draw
Quiet welding cell with automatic drawer loading for single-station work.
This workstation pairs a full sound enclosure with an automatic draw: the operator loads the drawer, the part cycles inside the quiet cell, and the finished assembly returns. Lower noise, guarded operation and steady single-station throughput in one package.
- Operating frequency
- 20 kHz / 35 kHz
- Conforms to CE standards and European safety requirements
- Switches
- START button, EMERGENCY STOP button
- Capacity
- Size of the adjustable levelling plate: 382 x 295 mm
- Weight
- Workstation: 170 kg, incl. press and generator: approx. 230 – 300 kg
- Compatible with Welder Presses
- Dynamic 3000, Dynamic 745, Standard 3000, Standard 745
Defining features
- Easy to integrate and operate
- Ultrasonic press and sound insulated Sound Enclosure in one
- Ergonomic workspace thanks to adjustable height
- Easy to place workpiece in the drawer, even using a robot arm and pick-and-place machine
- Significant reduction in noise; no hearing protection required
- Meets the highest safety standards
- Extremely slim design
- Easy to handle with a forktruck
Technical specifications
| Operating frequency | 20 kHz / 35 kHz |
|---|---|
| Conforms to CE standards and European safety requirements | |
| Switches | START button, EMERGENCY STOP button |
| Capacity | Size of the adjustable levelling plate: 382 x 295 mm |
| Weight | Workstation: 170 kg, incl. press and generator: approx. 230 – 300 kg |
| Compatible with Welder Presses | Dynamic 3000, Dynamic 745, Standard 3000, Standard 745 |
