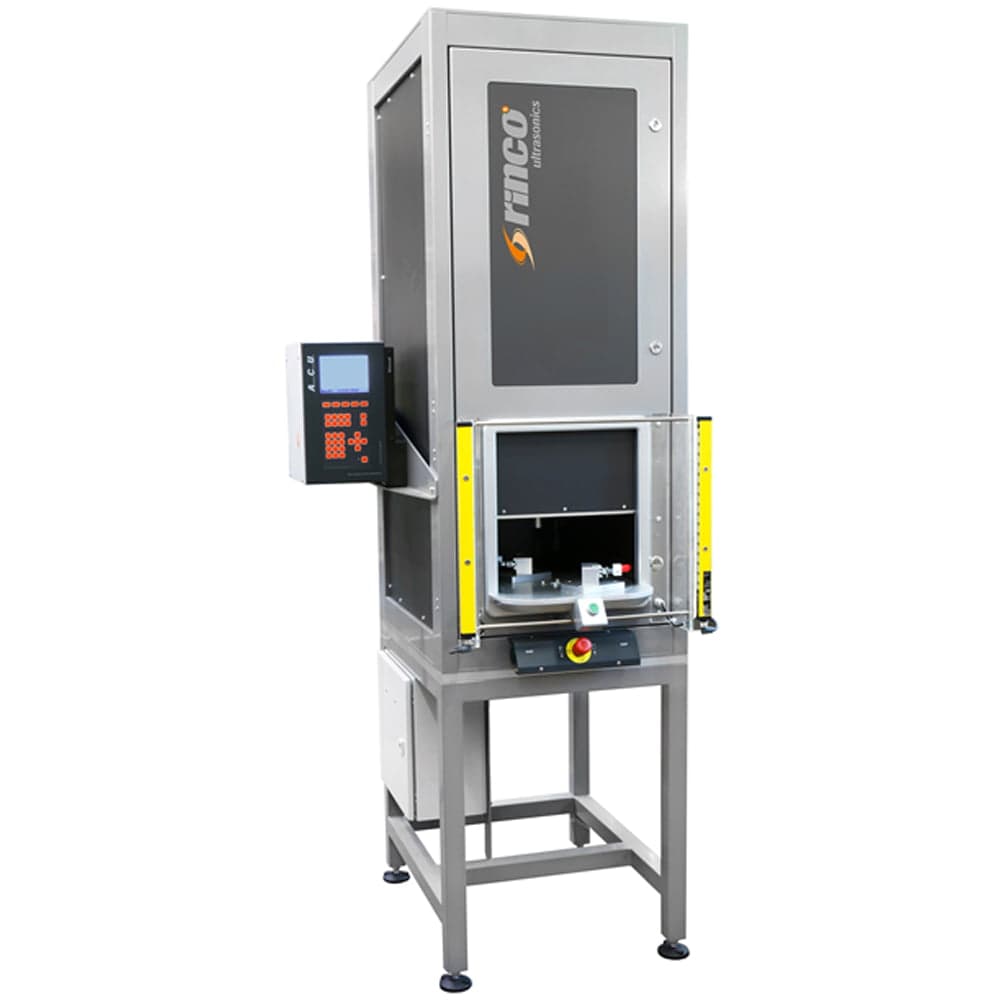

Workstation Enclosure with Rotary Table
Enclosed rotary-table cell — load while you weld for higher throughput.
The rotary-table workstation keeps the process moving: the operator loads one nest while the enclosed station welds the other. A quiet, guarded cell that lifts single-machine throughput without full automation.
- Operating frequency
- 20 kHz / 35 kHz
- Conforms to CE standards and European safety requirements
- Switches
- START button
- Weight
- Workstation: 170 kg, incl. press and generator: approx. 230 – 300 kg
- Suitable for Press Welders
- Dynamic 3000, Dynamic 745, Standard 3000, Standard 745
Defining features
- Easy integration and operation
- Ultrasonic welding press and sound enclosure rolled into one
- Massive noise reduction, no hearing protection required
- Short production cycles

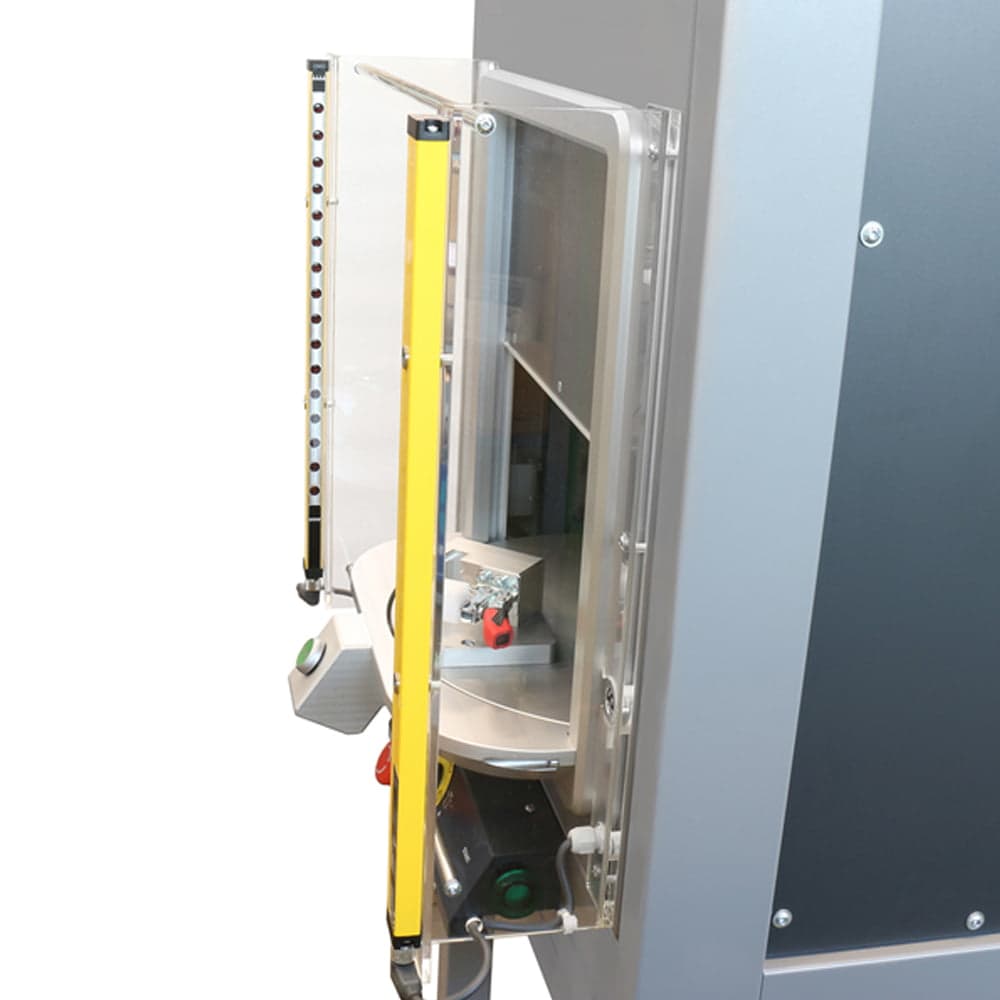

- Improved safety for operators and persons in the vicinity thanks to light barrier
- Ergonomic workplace thanks to adjustable height
- Slim design
- Easy to handle with forklift
- Conforms to highest safety standards
Technical specifications
| Operating frequency | 20 kHz / 35 kHz |
|---|---|
| Conforms to CE standards and European safety requirements | |
| Switches | START button |
| Weight | Workstation: 170 kg, incl. press and generator: approx. 230 – 300 kg |
| Suitable for Press Welders | Dynamic 3000, Dynamic 745, Standard 3000, Standard 745 |
