35 kHz01 / 03Click to expand ⤢Ultrasonic welding press · Standard Series

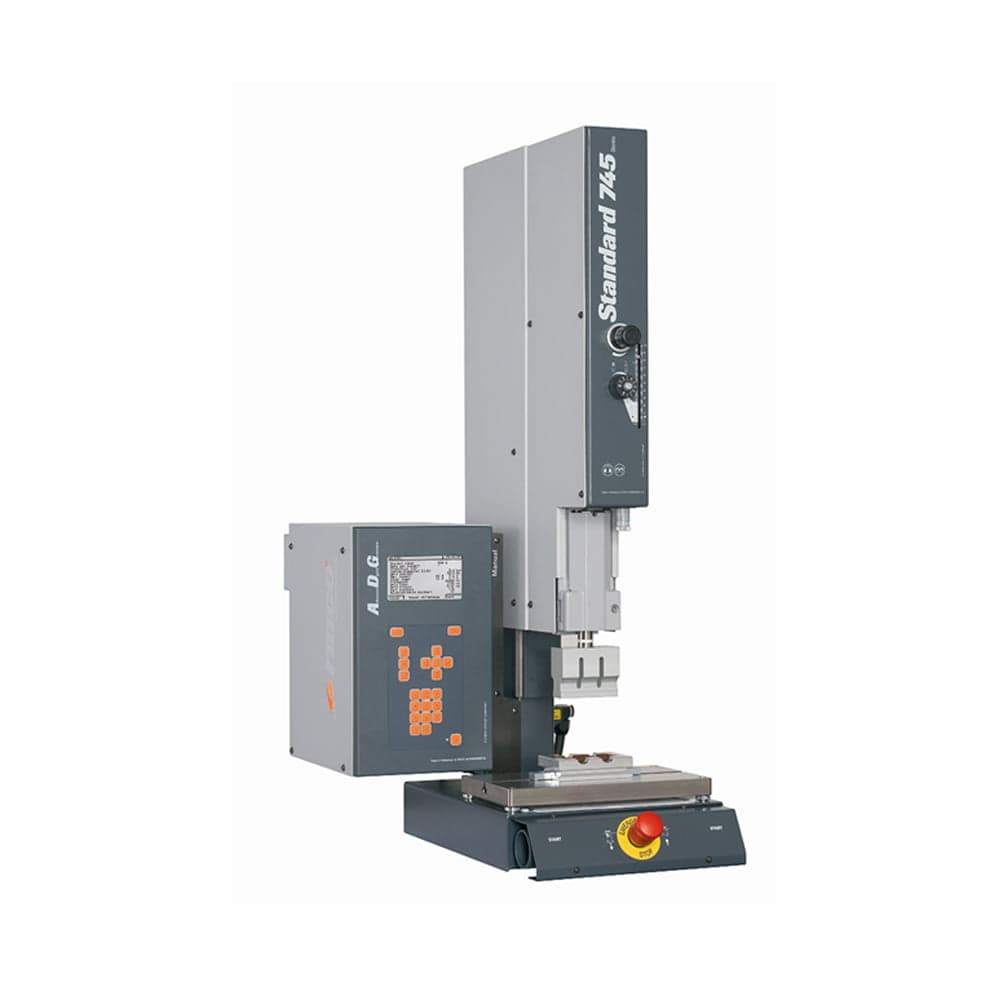

Standard 745
Precise 35 kHz pneumatic press for small and mid-size parts — up to 745 N.
The Standard 745 pairs 35 kHz precision with 745 N of pneumatic force, suiting smaller parts, finer joints and cosmetic surfaces. It shares the Standard series' rigid frame and dependable process control, and slots neatly into cells where floor space is tight.
- Operating frequency
- 35 kHz
- Conforms to CE standards and European safety requirements
- Maximum force
- 745 N at 6 bar compressed air
- Maximum stroke
- 100 mm
- Weight
- 40 kg without Generator
- Generator suitability
- ADG35-400/600/900
Defining features
- Compatible for integration into special purpose machines
- High process reliability
- Repeatable welding force
- Simple tool change and quick setup
- Integrated travel measurement with accuracy of ± 0.01 mm
Technical specifications
| Operating frequency | 35 kHz |
|---|---|
| Conforms to CE standards and European safety requirements | |
| Maximum force | 745 N at 6 bar compressed air |
| Maximum stroke | 100 mm |
| Weight | 40 kg without Generator |
| Generator suitability | ADG35-400/600/900 |
