35 kHz01 / 03Click to expand ⤢Ultrasonic welding press · Standard Series

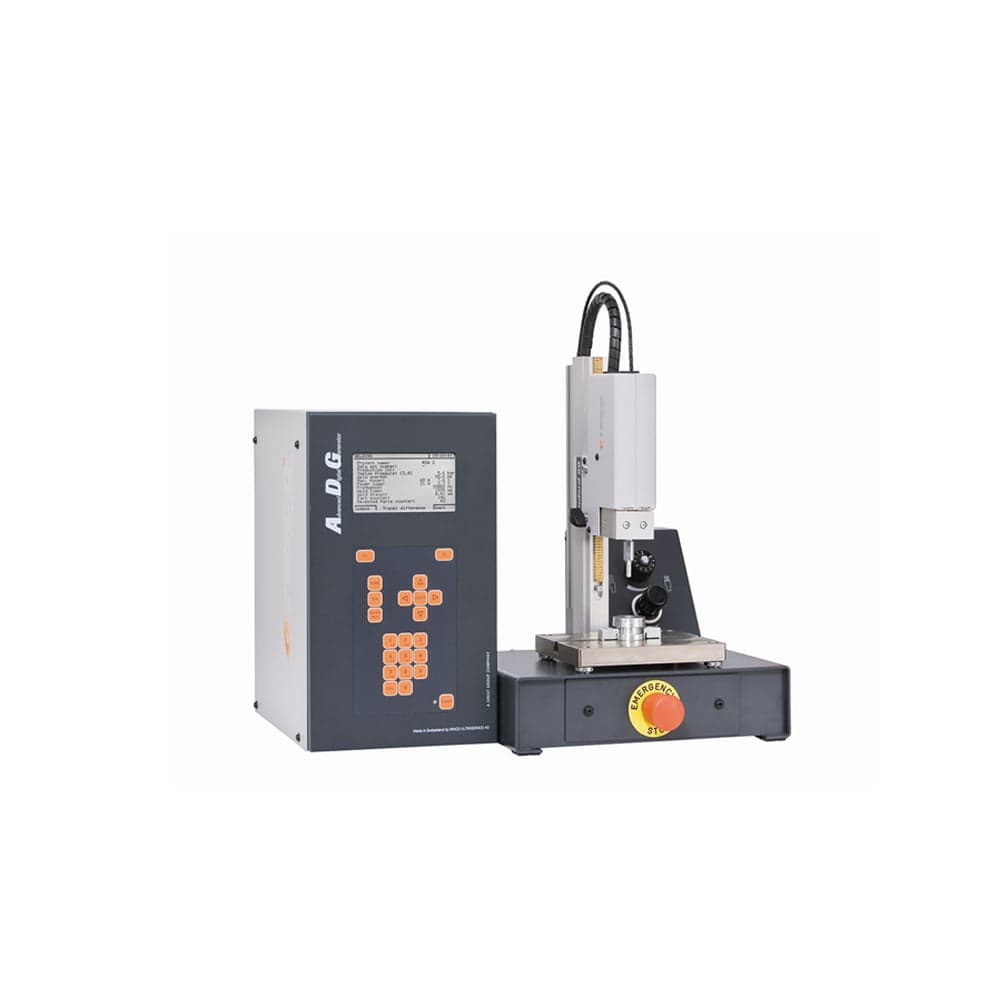

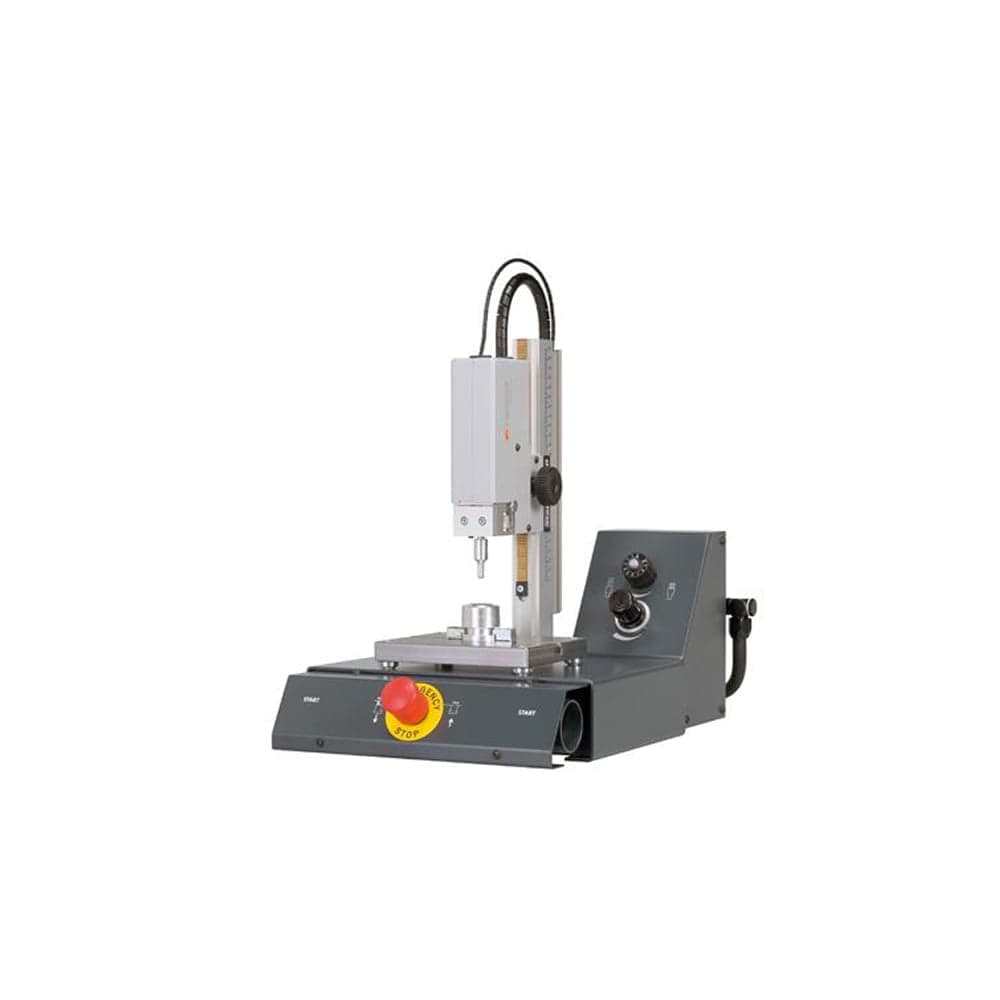

Standard 50
Compact 35 kHz press for fine, low-force welding of delicate parts.
The Standard 50 is the finest-touch press in the Standard series: a compact 35 kHz machine with low-force actuation for delicate parts, small joints and precision assemblies where a heavier press would be overkill.
- Operating frequency
- 70 kHz
- Conforms to CE standards and thus corresponds to the European safety requirements
- Maximum force
- 50 N at 6 bar compressed air
- Maximum stroke
- 25 mm
- Weight
- 16 kg without generator
- Generator sutiablility
- ADG70-100
Defining features
- Designed for integration into special purpose machinery
- High process reliability
- Repeatable welding force
- Integrated travel measurement
- Simple tool change and quick setup
- Modular construction
Technical specifications
| Operating frequency | 70 kHz |
|---|---|
| Conforms to CE standards and thus corresponds to the European safety requirements | |
| Maximum force | 50 N at 6 bar compressed air |
| Maximum stroke | 25 mm |
| Weight | 16 kg without generator |
| Generator sutiablility | ADG70-100 |
