20 kHz01 / 07Click to expand ⤢Servo ultrasonic welding machine · Electrical Motion Series

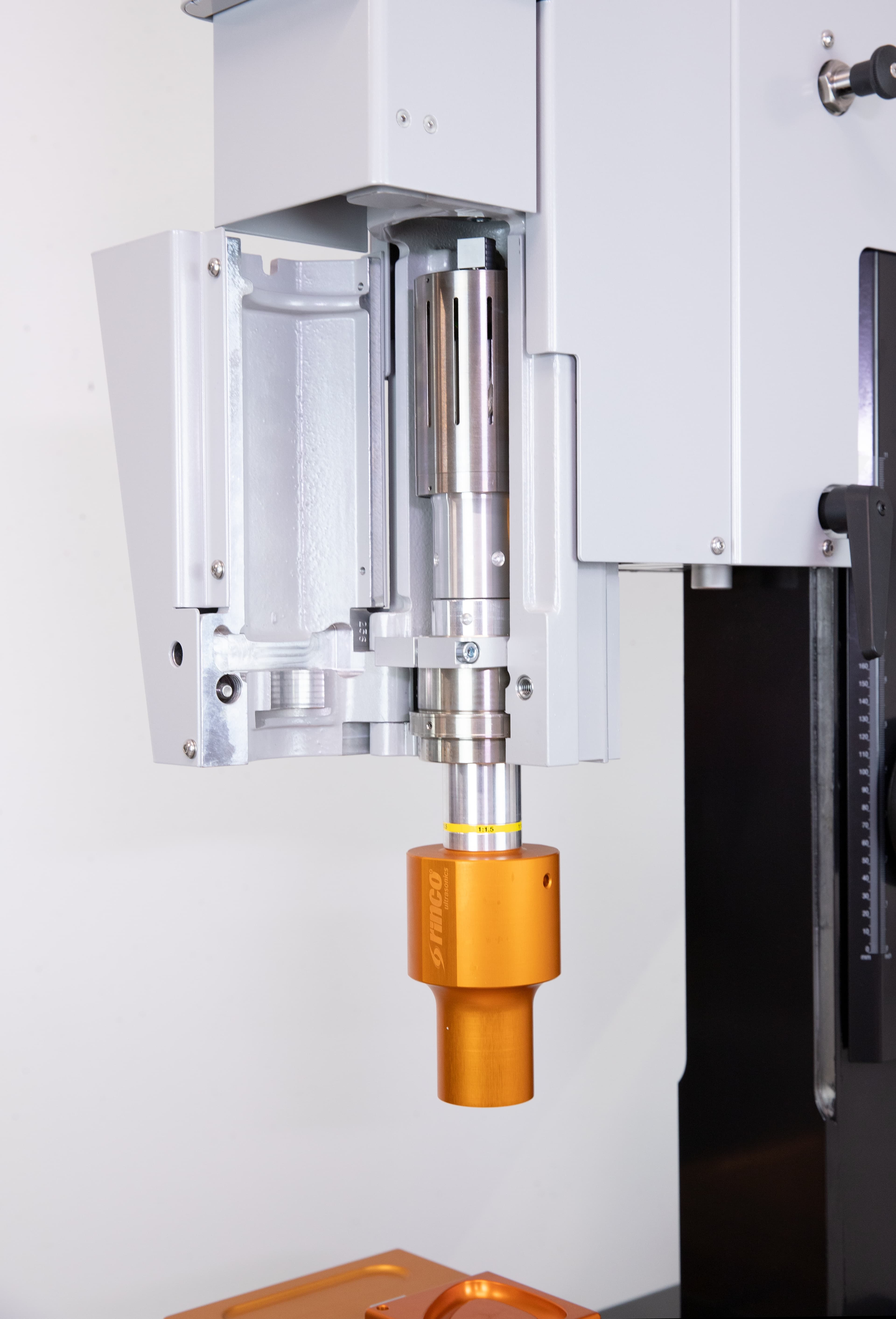

Electrical Motion 20

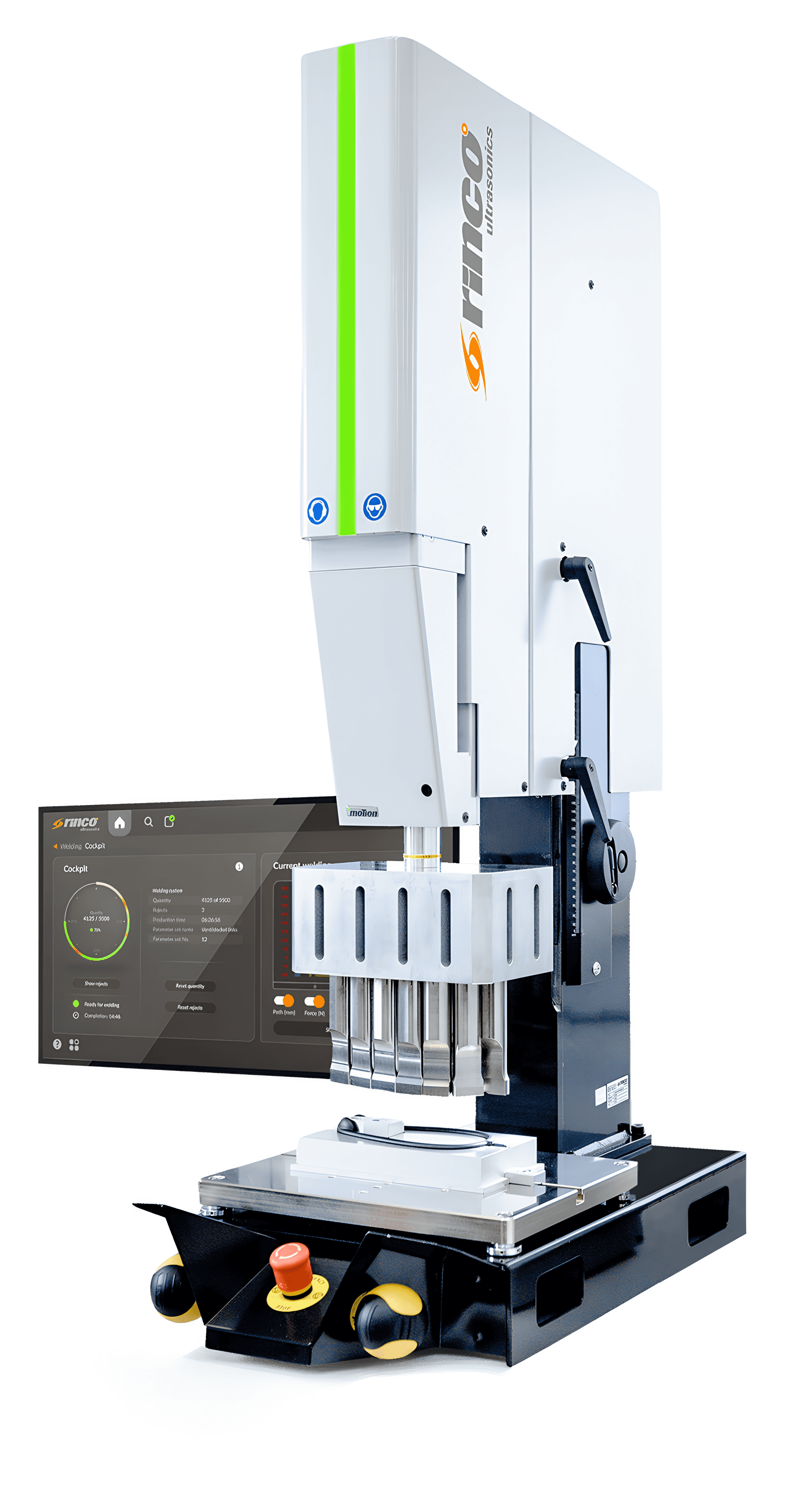

Servo-electric 20 kHz welder for large parts and fully validated processes.
The Electrical Motion 2-20 replaces pneumatics with a servo drive, controlling welding force, speed and amplitude exactly, with trigger and braking points regulated independently of one another. Events and changes are written to an audit trail that cannot be deleted, so traceability and process reliability are guaranteed. It is built for welding and punching thermoplastics, non-wovens and textiles of medium to large size — and for any 20 kHz application where process validation matters.
- Operating frequency
- 20 kHz
- Safety conformity
- CE-compliant - meets European safety standards & norms
- Maximum force
- 3000 N
- Max. tool stroke
- 100 mm
- Weight
- Approx. 135 kg without generator and servo control unit
- Suitable generator type
- XDG2-20
Defining features
- Electrically driven
- User-defined actuator starting position
- Fine-tuned parameter settings for welding force, speed and amplitude
- Choice of 8 welding modes
- Smelting process can be divided into up to 10 steps

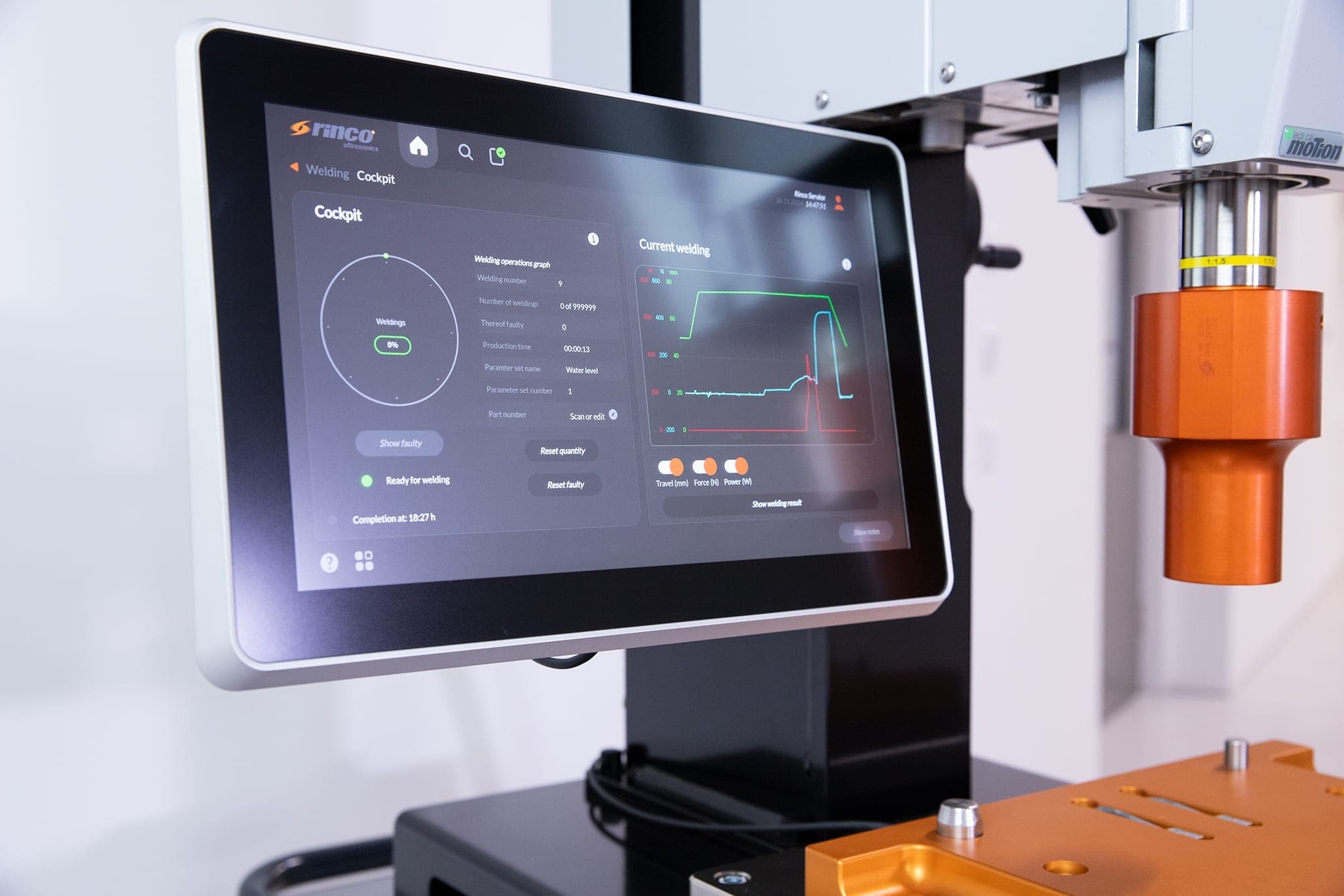

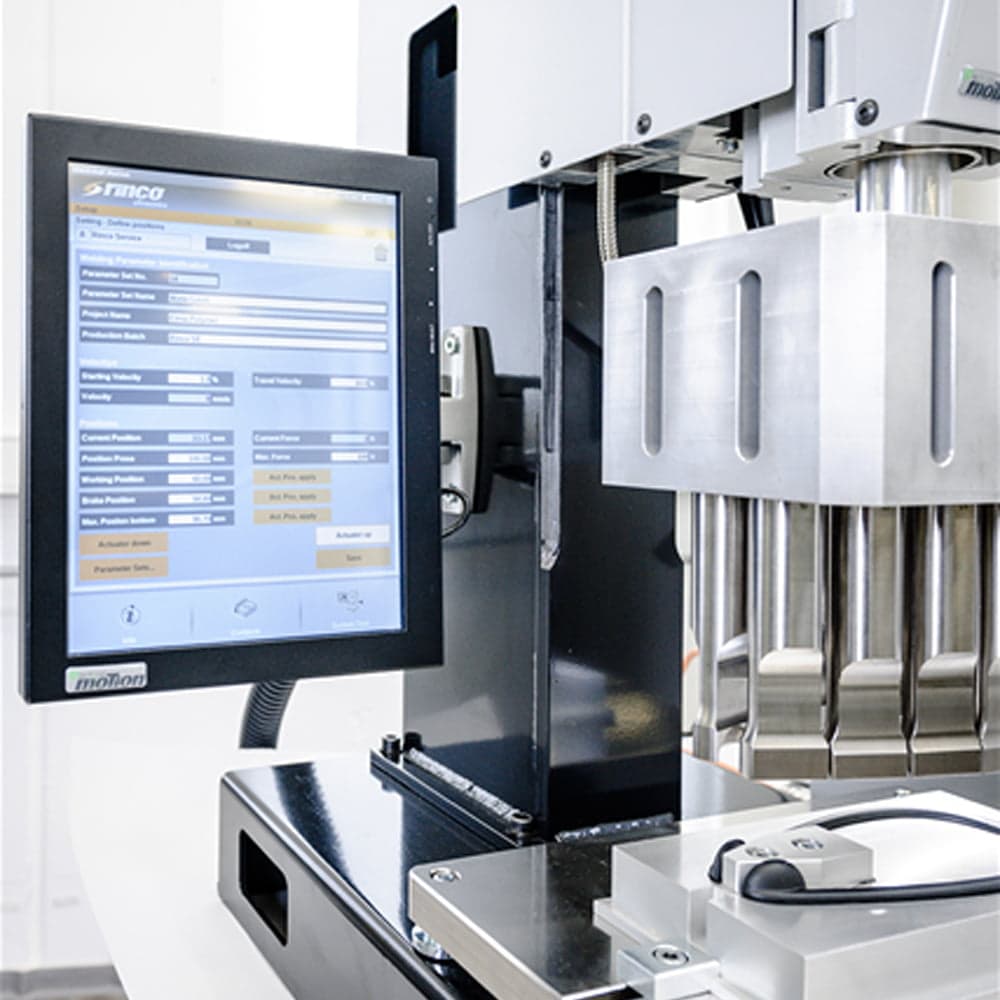

- The settings are made on a 12" LCD swivel touch screen
- Linux Ubuntu operating system
- Both force sensor and amplitude can be calibrated
- Various interfaces incl. 3 freely programmable digital outputs
- Audit trail
- Remote access service
- Swivel work light

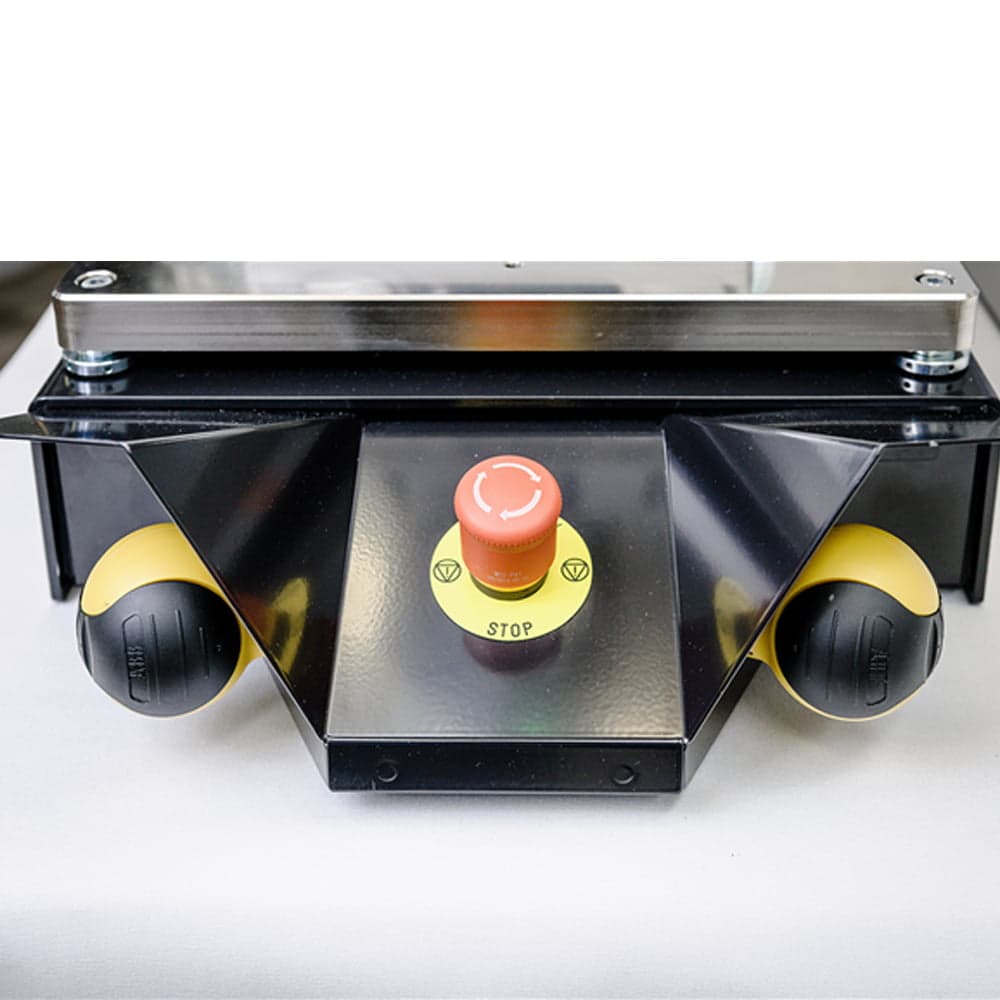

- Two-hand control with Safeballs
- Work status light on the front of the pillar
- Type-tested
- Highest safety level (PLe)
- Optional quick-change system — tools replaced in minutes, with indexed removable carriers
- Optional part scanner with XDG2-series generators, handheld wireless or stationary for hands-free scanning
Technical specifications
| Operating frequency | 20 kHz |
|---|---|
| Safety conformity | CE-compliant - meets European safety standards & norms |
| Maximum force | 3000 N |
| Max. tool stroke | 100 mm |
| Weight | Approx. 135 kg without generator and servo control unit |
| Suitable generator type | XDG2-20 |
