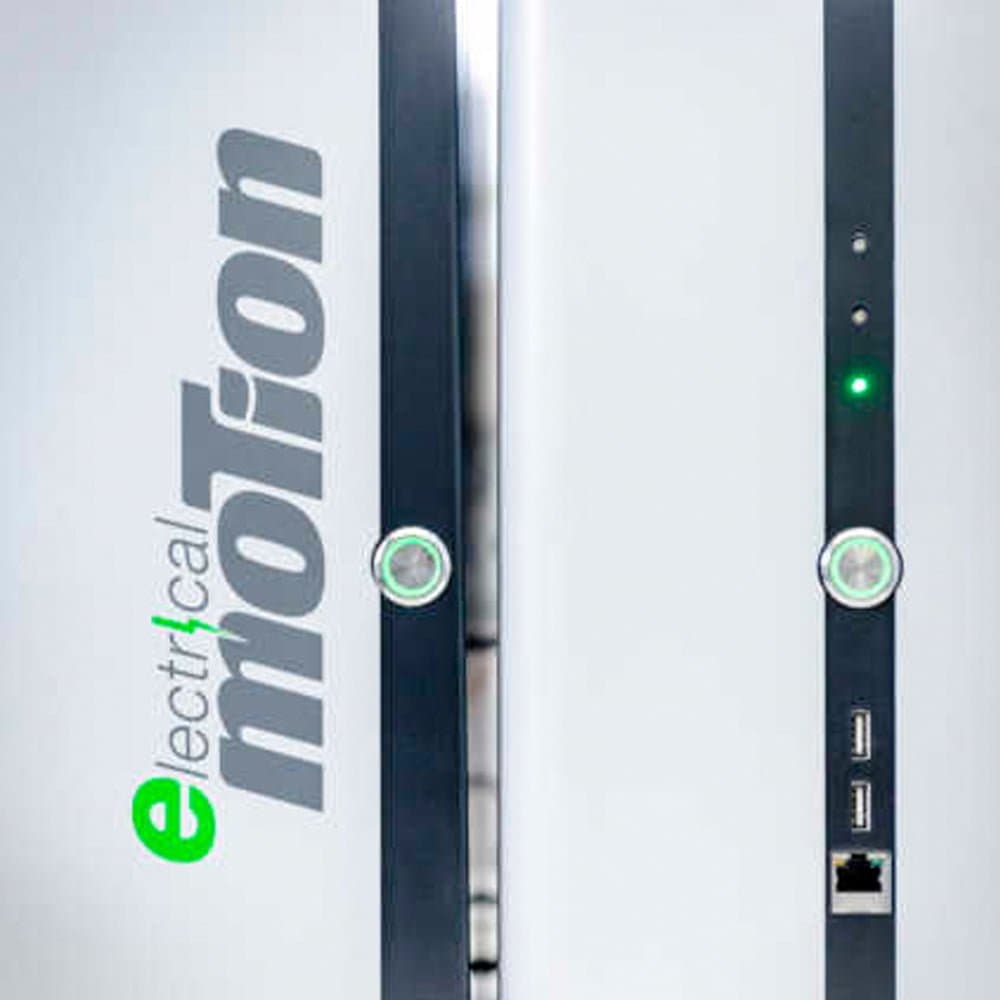

XDG Generator
Rinco's flagship generator — full process control, data and connectivity.
The XDG is the generator behind Rinco's most demanding processes: comprehensive weld modes, process monitoring, data capture and connectivity, driving Electrical Motion machines and high-specification stations where every weld is measured.
Defining features
- Operating frequency : 20 kHz / 35 kHz
- Power output : 2000 W or 3000 W / 900 W
- Operating modes : Time mode, Energy mode, Time and Energy mode, Time or Energy mode, Travel mode absolute, Travel mode differential, Contact cut-off, Melting rate
- Communication and interfaces : RS232, Digital I/O, Analog I/O, USB, Ethernet
- Power supplies: 230 V ± 10 %, 50 / 60 Hz
- Amplitude : Adjustable 15 – 100 %, changeable in 1 % increments
- Weight : XDG: 16 kg, SCU: 9 kg
- Made in Switzerland
