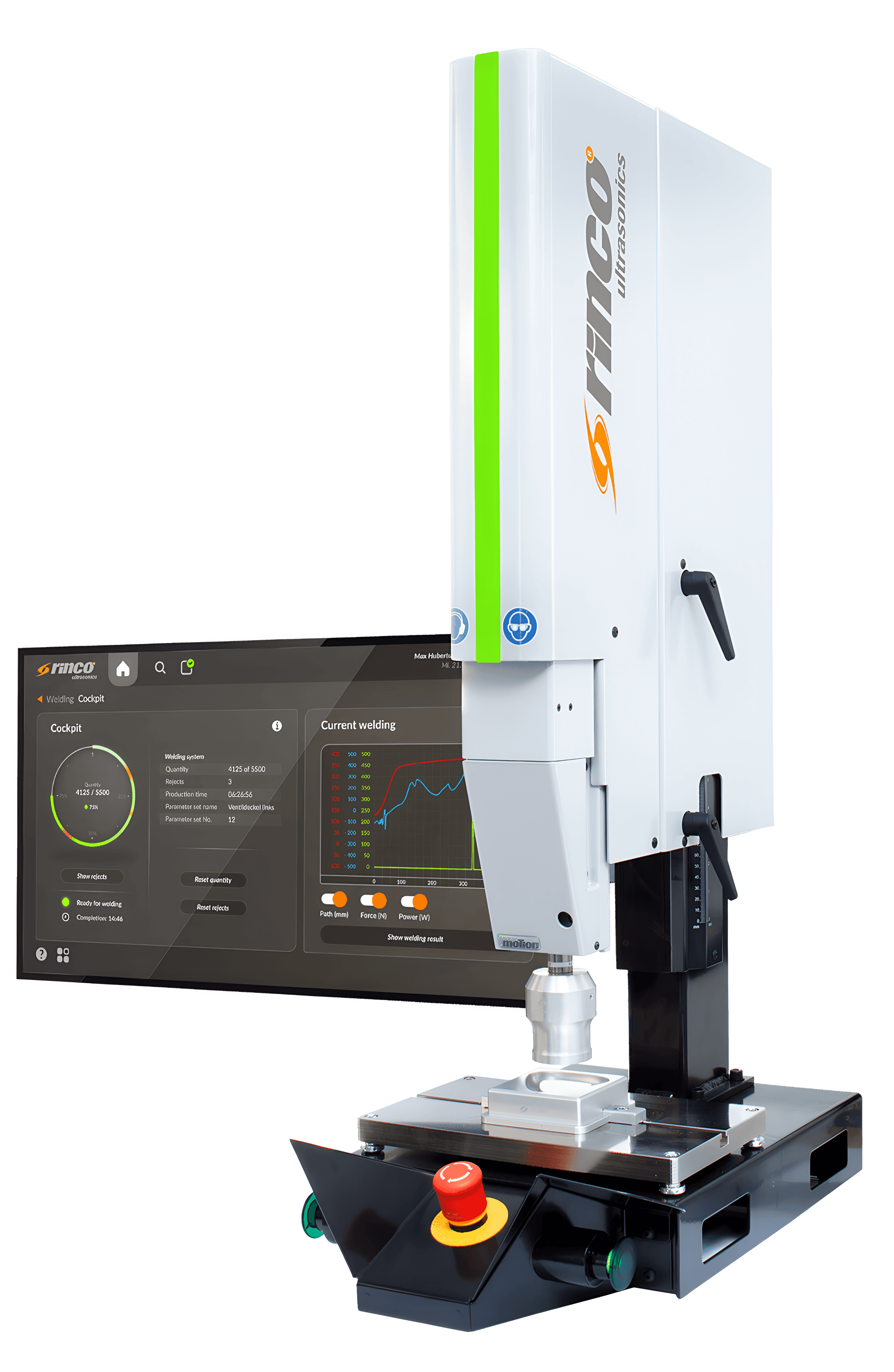

35 kHz01 / 07Click to expand ⤢Servo ultrasonic welding machine · Electrical Motion Series
Electrical Motion 35
Servo-electric 35 kHz welder for technically demanding thermoplastic and textile work.
The Electrical Motion 2-35 is built for welding, cutting and punching small to medium-sized thermoplastics, non-wovens and textiles. Its fully electric drive lets welding force, speed and amplitude — and the trigger and slow-down points — be adjusted precisely and independently of each other, for consistent results under demanding conditions. A comprehensive audit trail logs every event and change, and all relevant welding parameters are recorded against a workpiece ID, giving complete traceability.
- Operating frequency
- 35 kHz
- Safety conformity
- CE-compliant – meets European safety standards & norms
- Maximum force
- 745 N
- Max. tool stroke
- 100 mm
- Weight
- Approx. 53 kg without generator and servo control unit
- Suitable generator type
- XDG2-35
Defining features
- Electrically driven
- User-defined actuator starting position
- Fine-tuned parameter settings for welding force, speed and amplitude
- Choice of 8 welding modes
- Smelting process can be divided into up to 10 steps

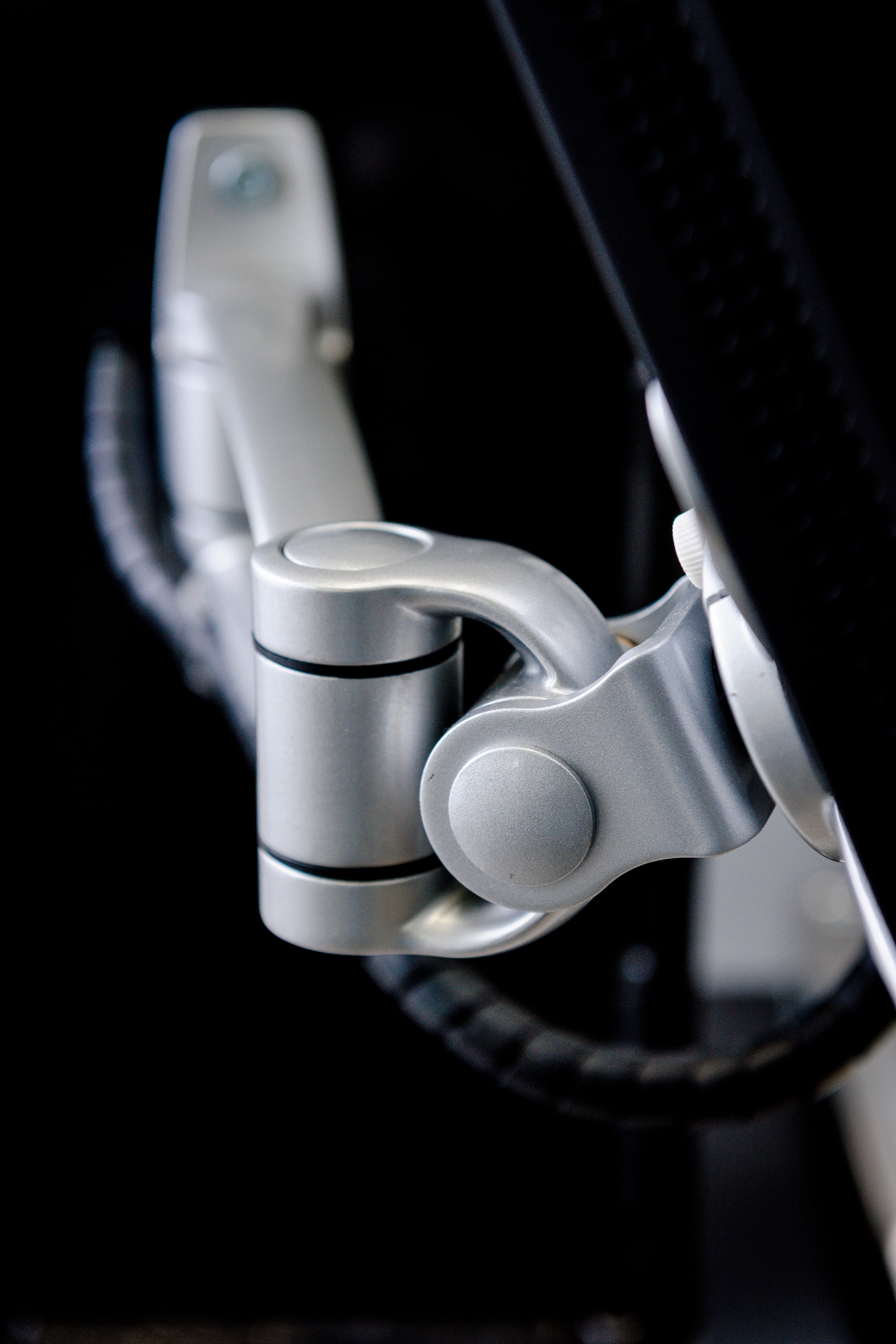

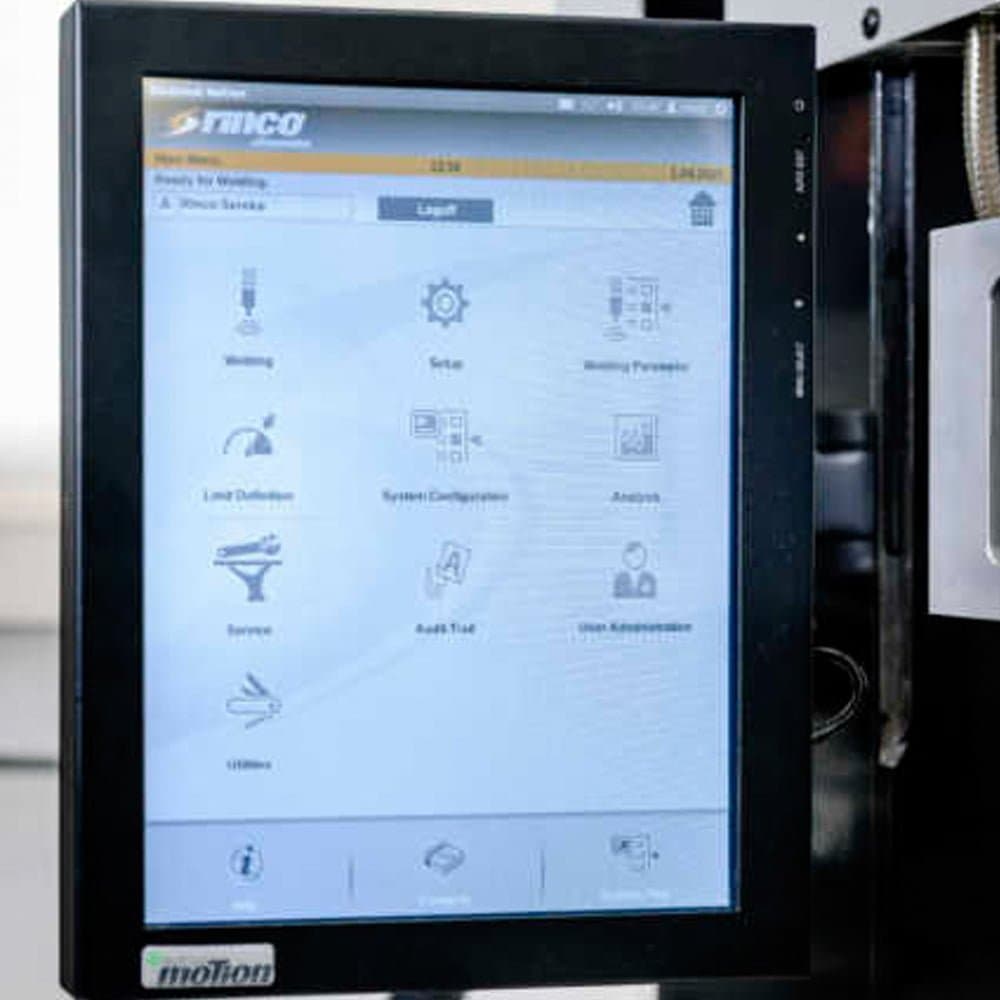

- The settings are made on a 12″ LCD swivel touch screen
- Linux Ubuntu operating system
- Both force sensor and amplitude can be calibrated
- Various interfaces incl. 3 freely programmable digital outputs
- Audit trail
- Remote access service

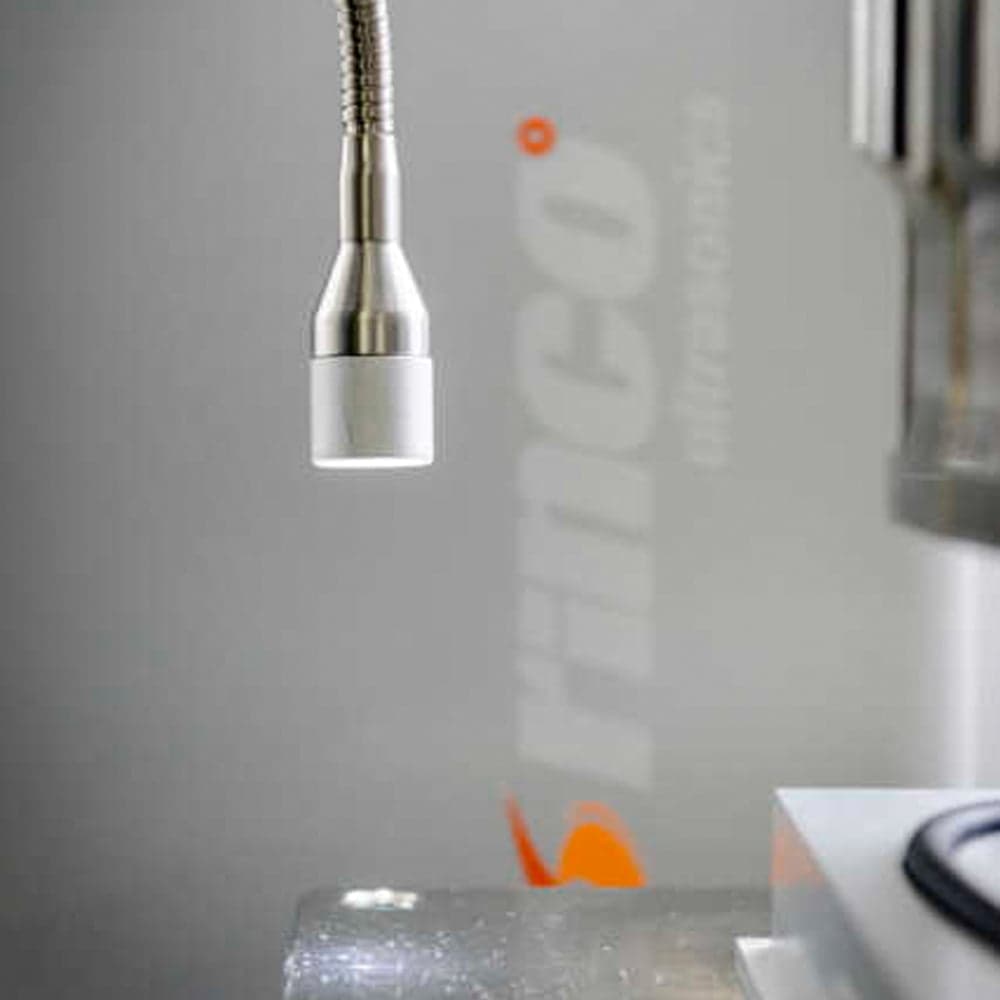

- Swivel work light

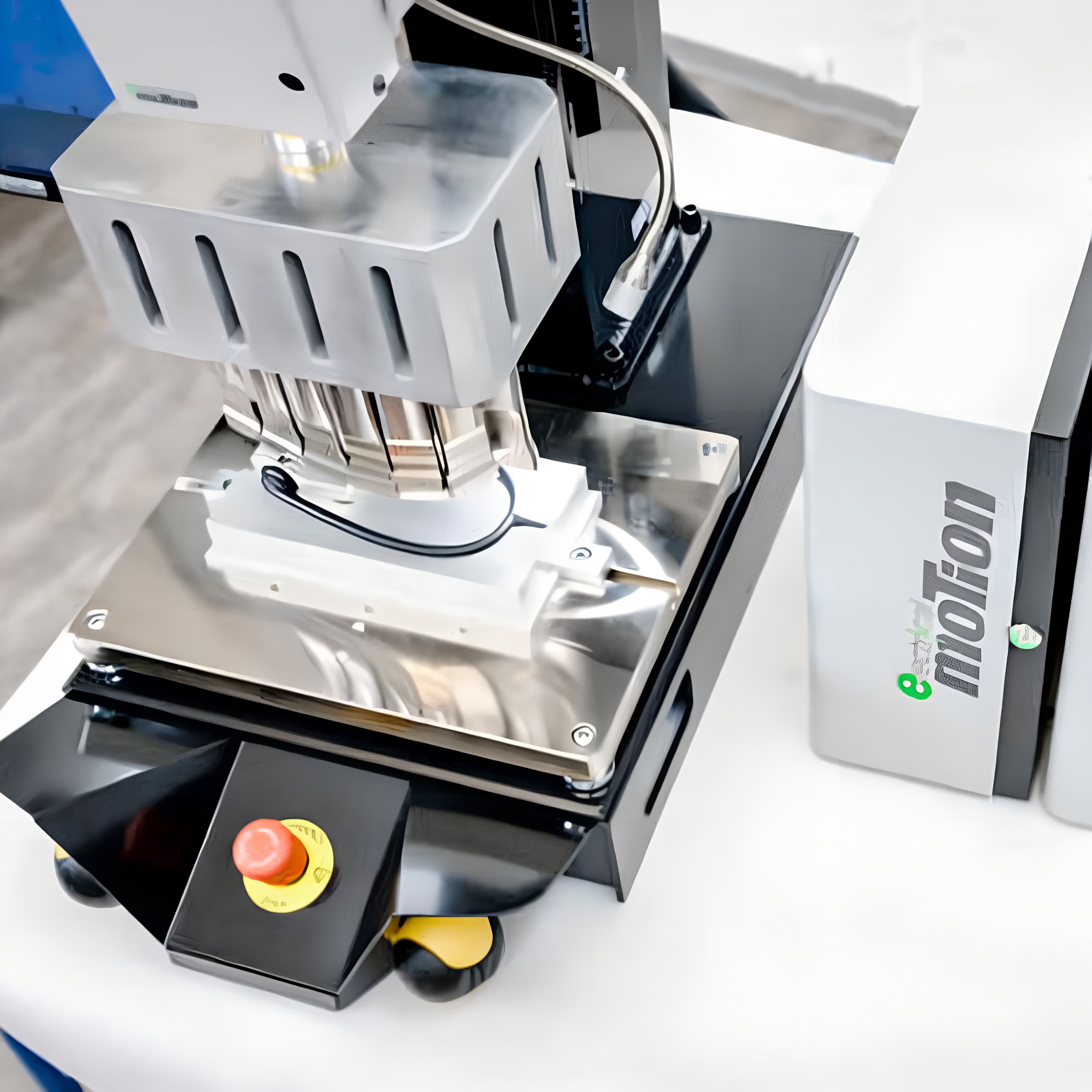

- Two-hand control with Safeballs
- Work status light on the front of the pillar
- Type-tested
- Highest safety level (PLe)
- Welding parameters recorded against workpiece ID for complete traceability
- Multi-level user management with role-based access control
Technical specifications
| Operating frequency | 35 kHz |
|---|---|
| Safety conformity | CE-compliant – meets European safety standards & norms |
| Maximum force | 745 N |
| Max. tool stroke | 100 mm |
| Weight | Approx. 53 kg without generator and servo control unit |
| Suitable generator type | XDG2-35 |

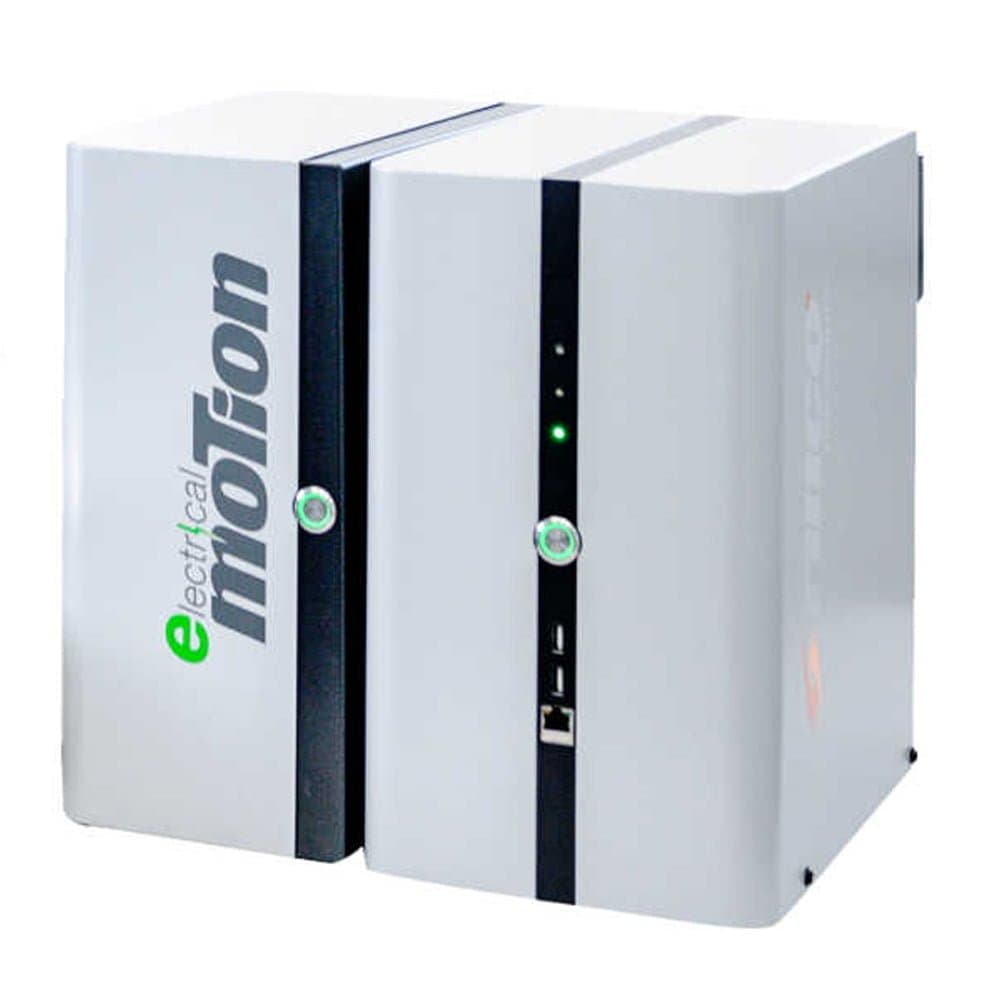

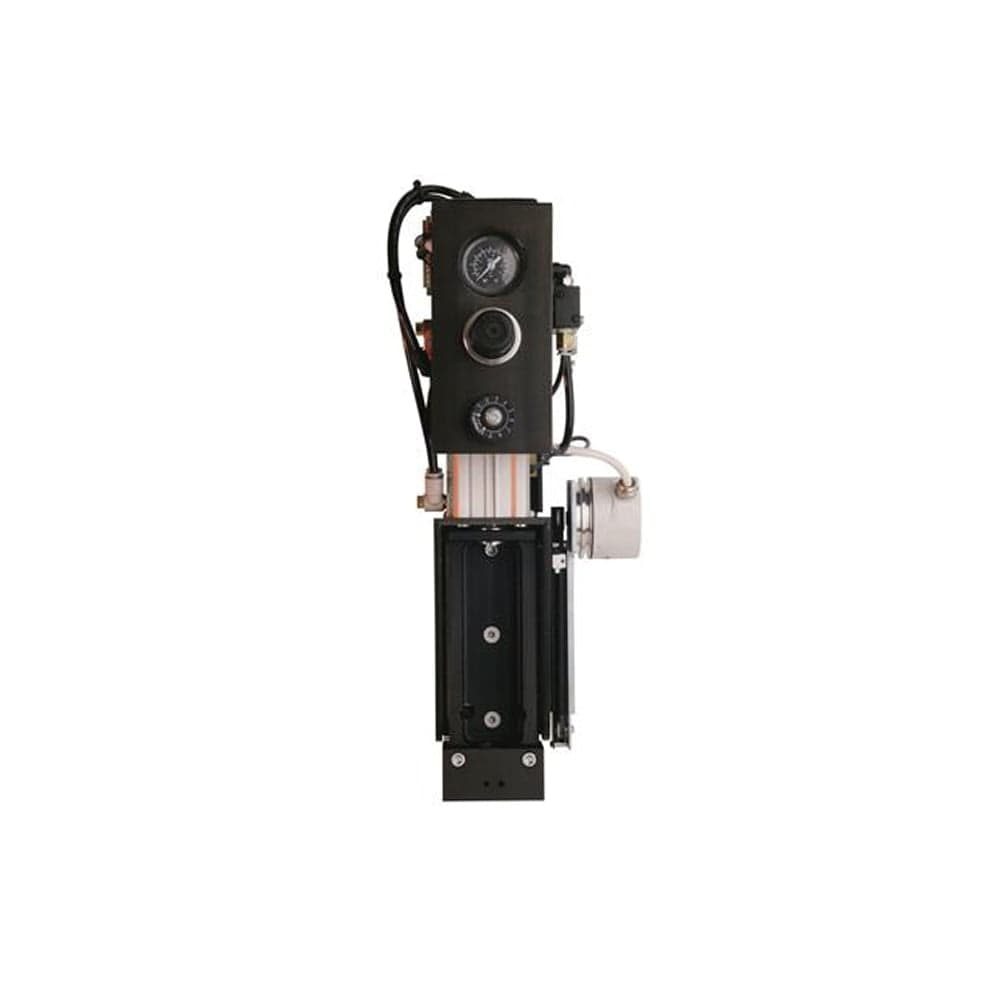

Related equipment
Applications support · Australia
Put the Electrical Motion 35 on your line
Send us your part, your material and your production target. Techspan's engineers will recommend the right Rinco machine, tooling and process — with trials where it matters.
