20 kHz01 / 02Click to expand ⤢OEM ultrasonic generator module · Ultrasonic Generators
AGM PRO Generator Module
The advanced OEM module — more power, more control, more connectivity.
The AGM PRO extends the AGM concept with more output, finer process control and richer interfaces — the module for OEMs and integrators building serious ultrasonic capability into special machines and production equipment.
- Operating frequency
- 20 kHz, 30 kHz, 35 kHz, 40 kHz or 70 kHz
- Operating modes
- Time mode, Energy mode, Time and Energy mode, Time or Energy mode, Continuous, Contact cut-off
- Communication and interfaces
- PROFINET*, PROFIBUS*, DeviceNet*, EtherNet/IP*, EtherCAT*, CANopen*, RS485, Digital inputs and outputs, Analogue inputs and outputs, *As interchangeable module
- Amplitude
- Adjustable 15 - 100 %, changeable in 1 % increments
- Weight
- 4 kg
Defining features
- Industry 4.0 compatible
- Slime design
- Touch display
- Easy integration to special purpose machines
- Optimised cooling
- Made in Switzerland
Technical specifications
| Operating frequency | 20 kHz, 30 kHz, 35 kHz, 40 kHz or 70 kHz |
|---|---|
| Operating modes | Time mode, Energy mode, Time and Energy mode, Time or Energy mode, Continuous, Contact cut-off |
| Communication and interfaces | PROFINET*, PROFIBUS*, DeviceNet*, EtherNet/IP*, EtherCAT*, CANopen*, RS485, Digital inputs and outputs, Analogue inputs and outputs, *As interchangeable module |
| Amplitude | Adjustable 15 - 100 %, changeable in 1 % increments |
| Weight | 4 kg |

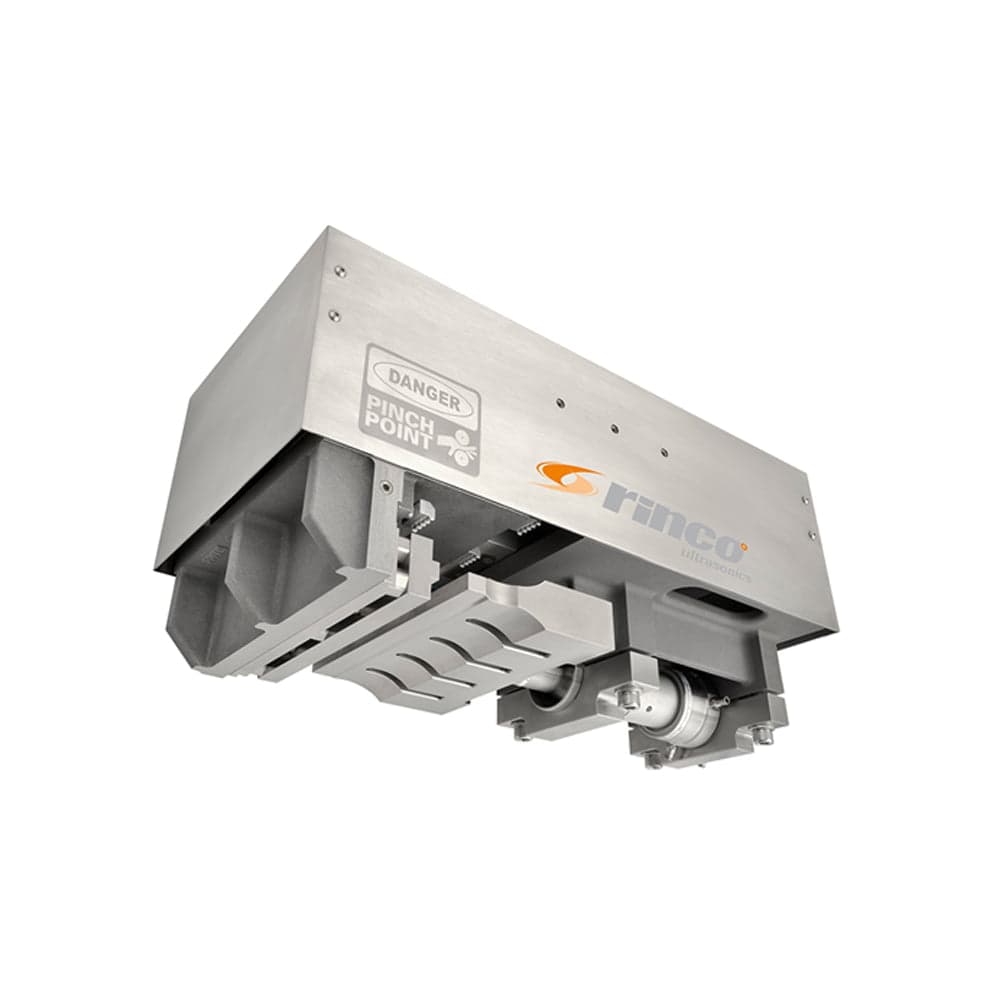

Related equipment
Applications support · Australia
Put the AGM PRO Generator Module on your line
Send us your part, your material and your production target. Techspan's engineers will recommend the right Rinco machine, tooling and process — with trials where it matters.
