70 kHz01 / 02Click to expand ⤢OEM ultrasonic generator module · Ultrasonic Generators

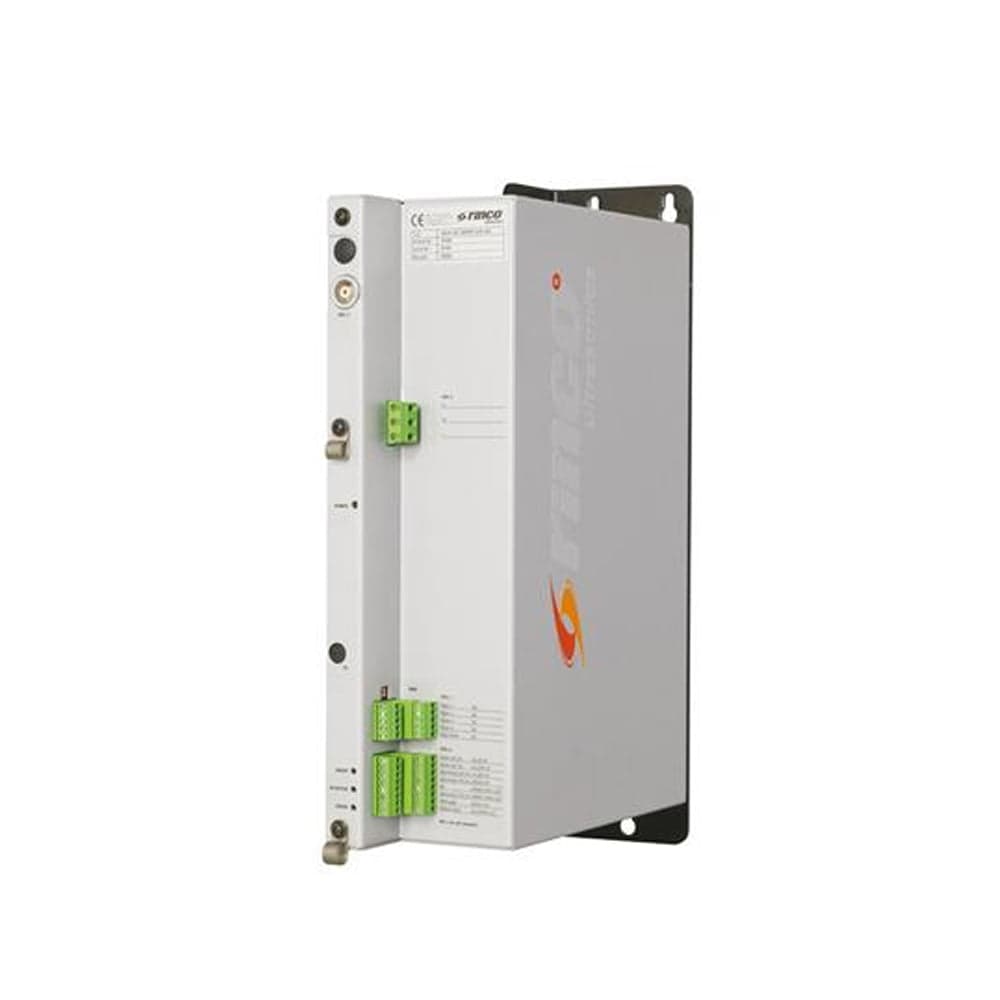

AGM Generator Module
Compact OEM generator module for building ultrasonics into your machine.
The AGM is Rinco's OEM building block: a compact generator module that integrates ultrasonic power directly into your machine or product. Automatic frequency tracking, amplitude control and machine interfaces in a mount-anywhere package.
- Operating frequency
- 70 kHz / 40 kHz / 35 kHz / 30 kHz / 20 kHz
- Operating modes
- Time dependant, energy dependant, continuous, contact cut-off
- Communication and interfaces
- RS485; CANopen
- Process control
- Digital inputs and outputs (24VDC); analogue inputs and outputs (0 - 10VDC); RS485; CANopen
- Weight
- AGM70: 5.5 kg; AGM35: 6.0 kg; AGM30: 6.0 kg; AGM20: 6.5 kg
- Options
- Parameterization software; line filter; ventilator filter; several ventilators
Defining features
- For integration into special purpose machinery
- All control tasks and parameter input via external controller
- Data transfer by bus compatible interfaces
- Digital inputs and outputs for controller
- Digital error coding
- Space saving side by side mounting in control cabinet
- Made in Switzerland
Technical specifications
| Operating frequency | 70 kHz / 40 kHz / 35 kHz / 30 kHz / 20 kHz |
|---|---|
| Operating modes | Time dependant, energy dependant, continuous, contact cut-off |
| Communication and interfaces | RS485; CANopen |
| Process control | Digital inputs and outputs (24VDC); analogue inputs and outputs (0 - 10VDC); RS485; CANopen |
| Weight | AGM70: 5.5 kg; AGM35: 6.0 kg; AGM30: 6.0 kg; AGM20: 6.5 kg |
| Options | Parameterization software; line filter; ventilator filter; several ventilators |
