20 kHz01 / 03Click to expand ⤢Ultrasonic actuator · Special Actuators

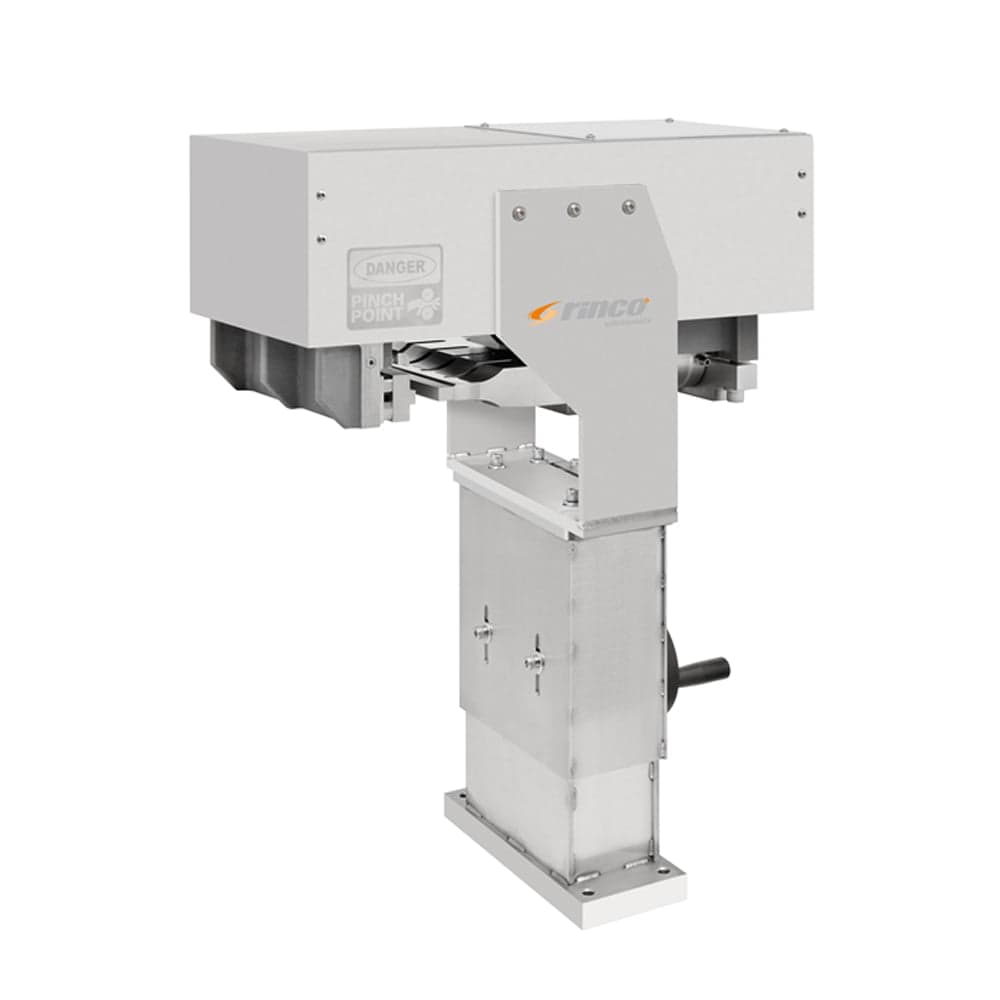

FPA 4500
Fine-process 20 kHz actuator with precision force control for automation.
The FPA 4500 combines high 20 kHz welding force with fine process control, giving integrators a drop-in ultrasonic weld station for demanding automated assembly. Compact mounting, precise stroke behaviour and full generator integration.
- Operating frequency
- 20 kHz
- Safety aspects
- CE-compliant meets European safety requirements
- Maximum force
- 2500 N
- Maximum tool stroke
- 50 mm
- Weight
- 36 kg (actuator only)
- Generator suitability
- AGM20-3000
Defining features
- Suitable for all FFS machines (form fill seal)
- Very robust design
- 100 % digital
- IP67 certified
- Retrofit kit to upgrade from heat sealing to ultrasonic sealing available
- Integrated air cooling
- Patented RINCO seal technology
- Exceptional tool technology
- GenParam configuration software
Technical specifications
| Operating frequency | 20 kHz |
|---|---|
| Safety aspects | CE-compliant meets European safety requirements |
| Maximum force | 2500 N |
| Maximum tool stroke | 50 mm |
| Weight | 36 kg (actuator only) |
| Generator suitability | AGM20-3000 |
Related equipment
Applications support · Australia
Put the FPA 4500 on your line
Send us your part, your material and your production target. Techspan's engineers will recommend the right Rinco machine, tooling and process — with trials where it matters.
