20 kHz01 / 03Click to expand ⤢Ultrasonic actuator · Special Actuators

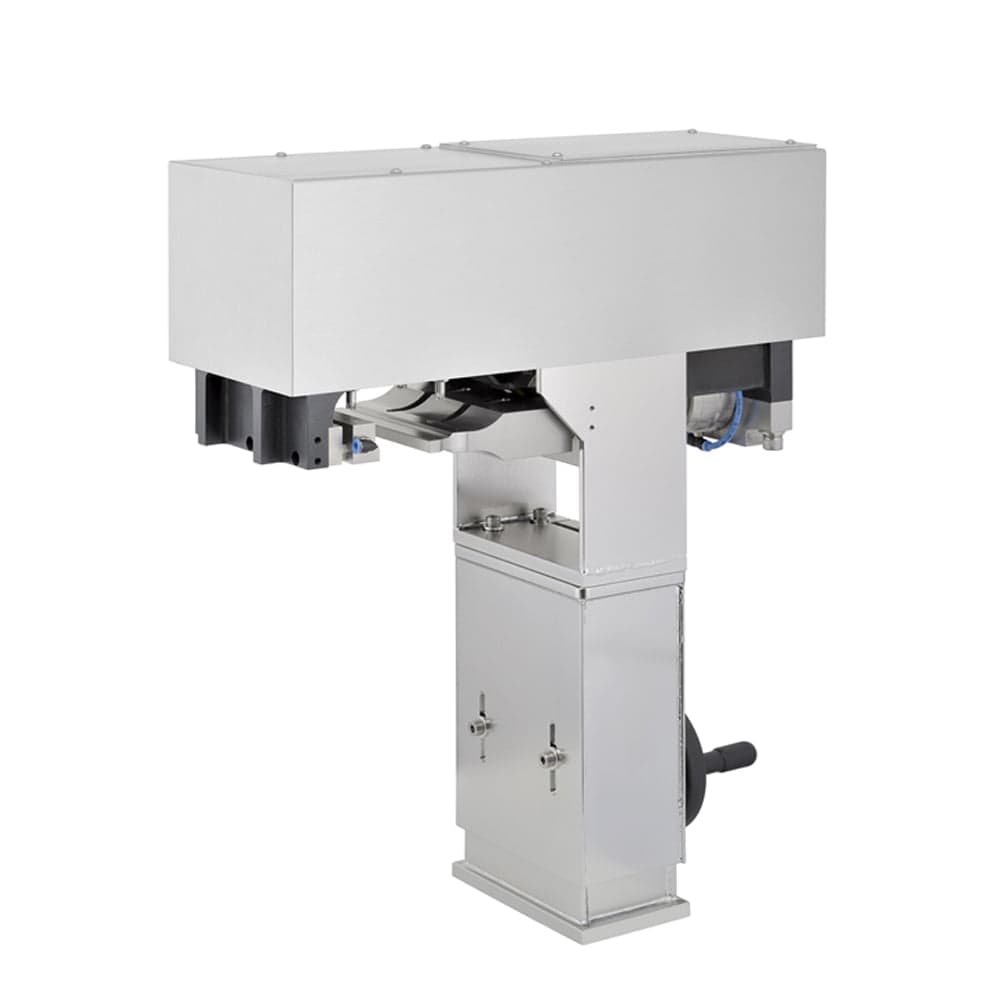

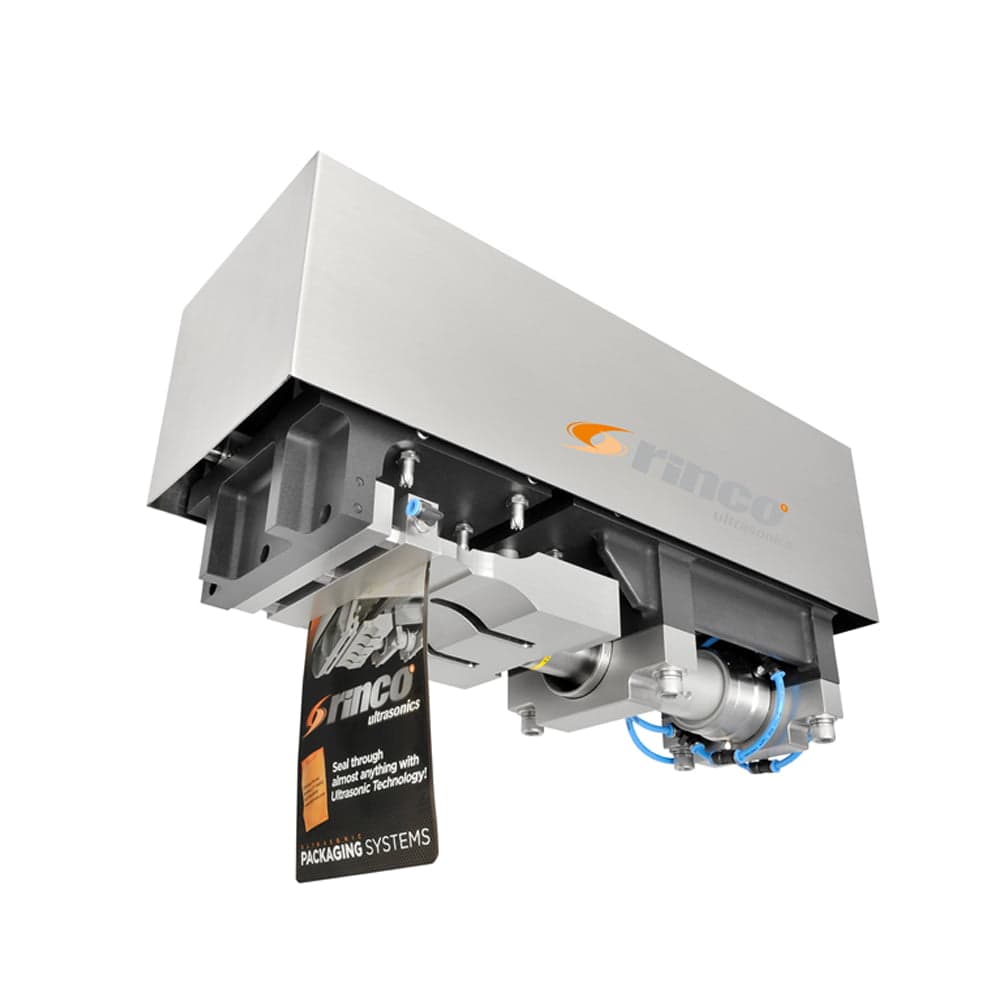

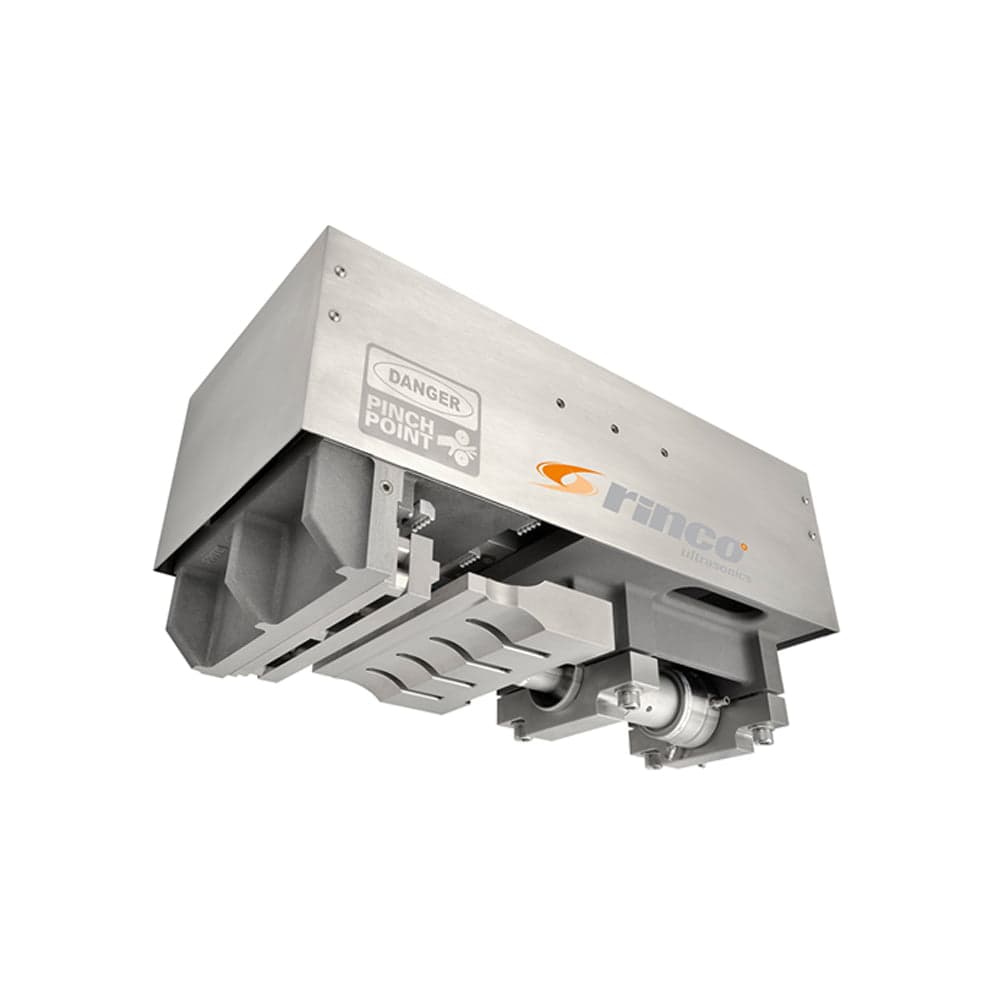

4500 T
High-force 20 kHz actuator for building into special machines and lines.
The 4500 T is a complete 20 kHz ultrasonic weld head for machine builders: actuator, stack and process control in a compact package engineered for mounting into special-purpose machines, rotary tables and automated lines where high welding force is needed.
- Operating frequency
- 20 kHz
- Safety aspects
- CE-compliant and meets European safety requirements
- Maximum force
- 2500 N
- Maximum tool stroke
- 50 mm
- Weight
- 36 kg (actuator only)
- Generator suitablility
- AGM20-3000
Defining features
- Suitable for all FFS machines (form fill seal)
- Very robust design
- 100 % digital
- IP67 certified
- Retrofit kit to upgrade from heat sealing to ultrasonic sealing available
- Integrated air cooling
- Patented RINCO seal technology
- Exceptional tool technology
- GenParam configuration software
Technical specifications
| Operating frequency | 20 kHz |
|---|---|
| Safety aspects | CE-compliant and meets European safety requirements |
| Maximum force | 2500 N |
| Maximum tool stroke | 50 mm |
| Weight | 36 kg (actuator only) |
| Generator suitablility | AGM20-3000 |
