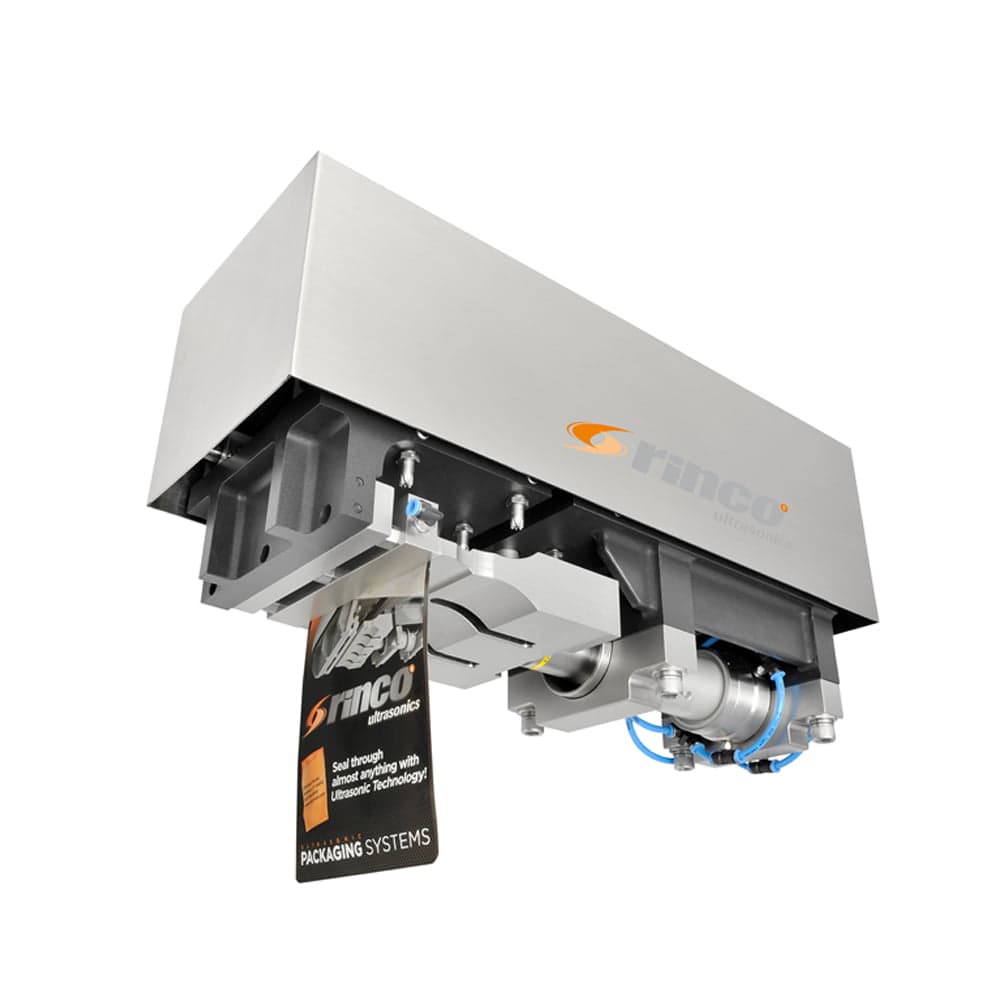

20 kHz01 / 01Click to expand ⤢Ultrasonic actuator · Special Actuators
SPA 20
Pneumatic 20 kHz actuator for robust welding stations in automated plants.
The SPA 20 is Rinco's pneumatic 20 kHz actuator for automation: a robust weld head with controlled stroke and trigger force, engineered for round-the-clock service in special machines and production lines.
- Operating frequency
- 20 kHz
- This actuator is used as a component in special purpose machines
- Maximum force
- 2000 N at 6 bar compressed air
- Maximum stroke
- 100 mm
- Weight
- 17 kg without oscillator system
- Generator suitability
- SDG20-1000/1500/2000, RDG20-1000/1500/2000, AGM20-1000/2000/3000, ADG20-1000/2000/3000
Defining features
- Operates with the generators RDG, SDG and ADG and the AGM generator in combination with an external controller
- Travel measurement, trigger / trigger potentiometer and depth detecting stop optionally retrofit
- Designed for integration into special purpose machines
- Compact construction
- Rugged design for maximum durability
Technical specifications
| Operating frequency | 20 kHz |
|---|---|
| This actuator is used as a component in special purpose machines | |
| Maximum force | 2000 N at 6 bar compressed air |
| Maximum stroke | 100 mm |
| Weight | 17 kg without oscillator system |
| Generator suitability | SDG20-1000/1500/2000, RDG20-1000/1500/2000, AGM20-1000/2000/3000, ADG20-1000/2000/3000 |
