Description
The Electrical Motion2-35 is ideal for welding, cutting, and punching small to medium-sized thermoplastics, non-wovens and textiles.

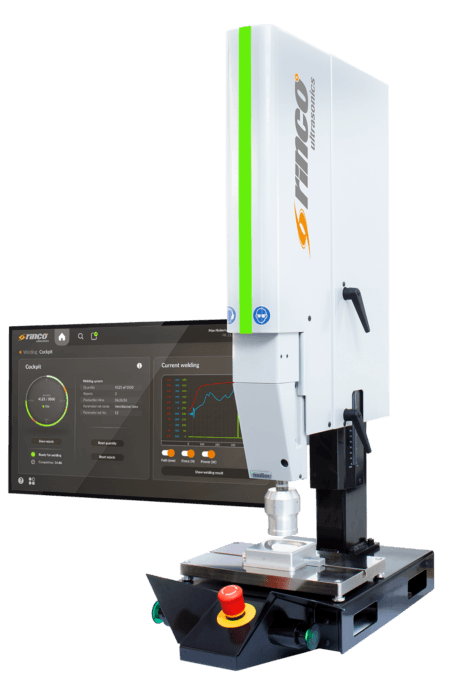

The Electrical Motion2-35 ultrasonic welding machine is the perfect partner for demanding and complex ultrasonic welding applications. Thanks to its fully electric drive, the machine impresses with maximum precision and an exceptional level of flexibility. Welding force, speed, and amplitude can be adjusted precisely and independently of each other, as can trigger and slow-down points. This allows you to achieve consistently excellent welding results, even under the most demanding conditions.
A comprehensive audit trail, in which every single event and change are logged, ensures maximum process reliability. This is supplemented by the precise recording of all relevant welding parameters, which can be clearly assigned to workpiece ID, creating the ideal basis for complete traceability.
Multi-level user management rounds out the system, enabling targeted access control based on individual roles and permissions. The Electrical Motion2-35 sets new standards in ultrasonic welding technology – it is powerful, safe, and forward-looking.
Technical Specifications:
- Operating frequency: 35 kHz
- Safety conformity: CE-compliant – meets European safety standards & norms
- Maximum force: 745 N
- Max. tool stroke: 100 mm
- Weight: Approx. 53 kg without generator and servo control unit
- Suitable Generator Type: XDG2-35
Documents
Brochure Electrical Motion2-35
